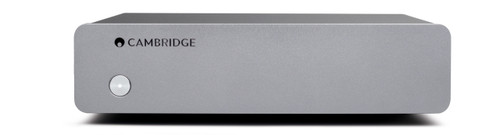

Product Overview
Whether you’re dusting off your record collection or embracing analogue through the vinyl revival, there’s a unique experience to be had from the moment you drop the needle on your favourite album. To preserve the unique warmth of the vinyl sound, the Solo phono preamplifier has been carefully designed with a state-of-the-art switch mode power supply and a new surface mounted circuit board layout to reduce unwanted noise.
The Technical run-down:
MAX POWER CONSUMPTION
10W
GAIN @ 1KHZ
39dB
NOMINAL OUTPUT
300mV
SENSITIVITY FOR NOMINAL OUTPUT
3.35mV
EQUIVALENT INPUT NOISE (A-WEIGHTED)
~0.09uV
RIAA CURVE ACCURACY
+/- 0.65dB 30Hz-20kHz
SIGNAL TO NOISE RATIO GROUNDED INPUTS REF. 1V OUTPUT (20HZ-20KHZ BW)
>90dB
THD+N 1KHZ (20-20KHZ BW)
<0.0025%
INPUT IMPEDANCE
47k Ohm
INPUT CAPACITANCE
100pF
OVERLOAD MARGIN
>30dB
CROSSTALK @10KHZ
>85dB
DIMENSIONS (H X W X D)
48x176x132 (1.9x6.9x5.2”)
WEIGHT
0.68kg/1.5lbs
