Meet the 8030C 5" Two-Way Studio Monitor Pair

genelec-classic-series-8030c-5-inch-two-way-active-studio-monitors-white-individual-front-stereophonic.png

Power and Precision

If you love the compact format of the 8010 and 8020 models but demand higher SPL and more bass extension, meet the 8030, a combination power and exacting precision to meet the most demanding of requirements, all with Genelec’s renowned accuracy and reliability.

When your project requires a powerful performance without sacrificing quality, the Genelec 8030C active studio monitor is designed to go above and beyond your wildest expectations. Introduced in 2017, even delivers 4 dB higher SPL and has a lower energy consumption than earlier models of 8030.

As stunning as it is sonically impressive, the 8030C features the rounded edges and colour-free, accurate reproduction of the rigid all-aluminium Minimum Diffraction Enclosure (MDE™). Every element of the design is crafted to perfect your listening experience.

Precise on- and off-axis frequency reproduction is courtesy of the Directivity Control Waveguide (DCW™), whilst broad low-frequencies and high SPLs are delivered with a flow-optimised internal curved reflex tube and a maximised internal volume. Genelec Intelligent Signal Sensing (ISS™) circuitry detects when your system is no longer in use, placing it into an environmentally friendly, power-saving standby mode.

From professional studios to outside broadcast vehicles, the 8030C has been crafted to combine extraordinary power with absolute precision.

Welcome to the sweet spot

A consistent best-seller, the 8030C sits in the perfect sweet spot of big monitor performance and small footprint. It offers precise imaging and staggering detail, but can go louder and lower than its smaller siblings – making it the perfect choice for slightly larger spaces.

Mixes that translate

The trademark rounded cabinet design of the 8030C delivers uncoloured reference performance both on and off axis, and rear panel room compensation switches let you optimise the 8030C for your individual room acoustics. All this helps you produce mixes that translate beautifully to other rooms and systems.

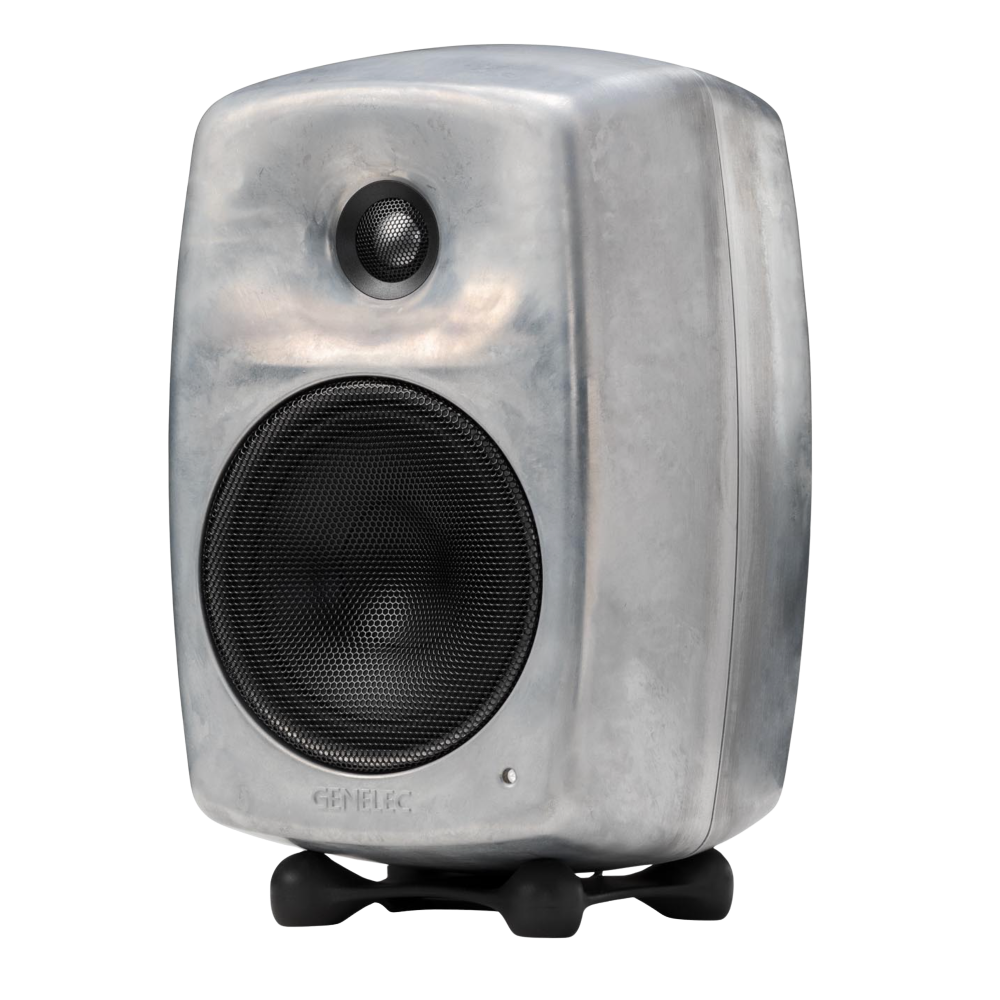

genelec-classic-series-8030c-5-inch-two-way-active-studio-monitors-raw-individual-angled-left-stereophonic.png

Key Features

  • Directivity Control Waveguide (DCW™) Technology
  • Minimum Diffraction Enclosure (MDE™) Technology
  • Reflex Port Design
  • Room Response Compensation
  • Optimised Amplifiers
  • Active Crossovers
  • Protection Circuitry
  • Intelligent Signal Sensing (ISS™) Technology
  • Iso-Pod™ Stand
  • Versatile Mountings

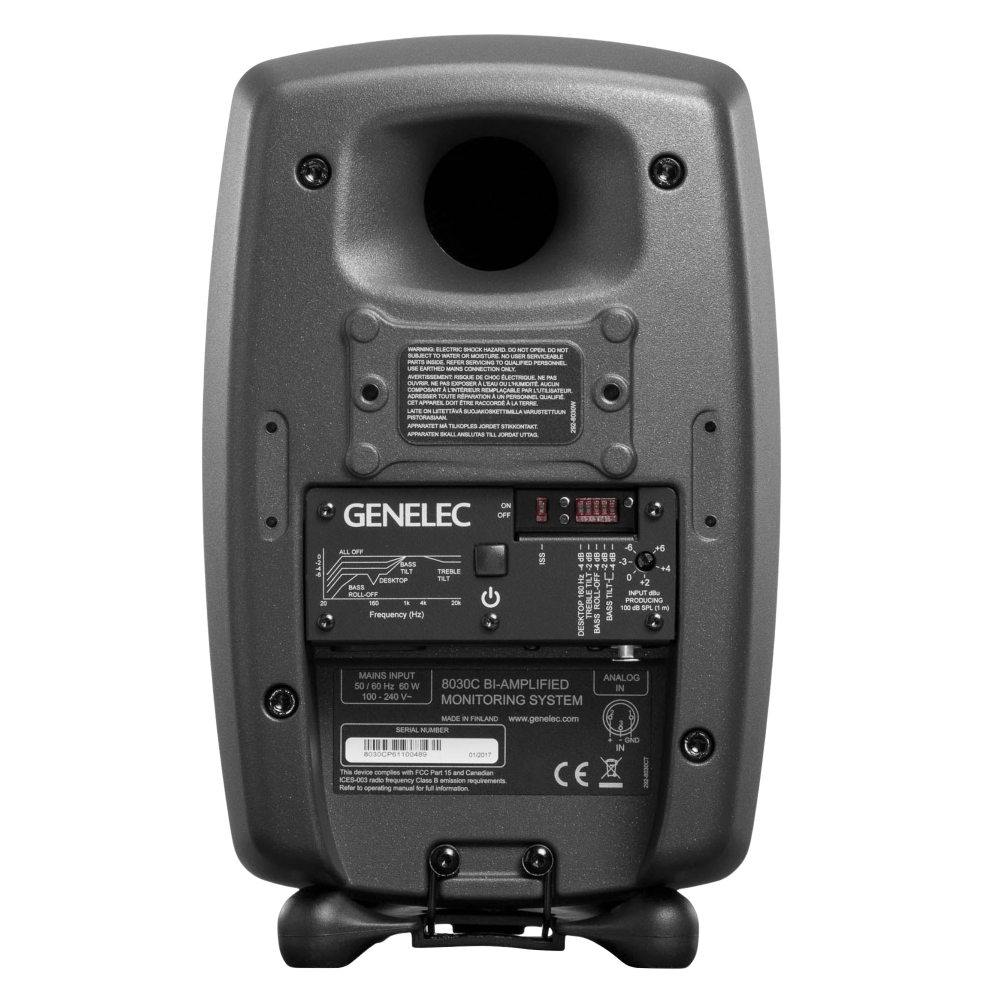

genelec-classic-series-8030c-5-inch-two-way-active-studio-monitors-dark-grey-individual-back-stereophonic.png

Technical Specifications

Frequency Response
54 Hz - 20 kHz (± 2.5 dB)

Low cutoff -6dB
47 Hz

High cutoff -6dB
25 kHz

SPL

Peak SPL
≥110 dB
Maximum peak acoustic output per pair on top of console, at 1 m distance with music material

Short term max SPL
≥104 dB
Max. short term sine wave acoustic output on axis in half space, averaged from 100 Hz to 3 kHz, at 1m distance.

Long term max SPL
≥96 dB
Maximum long term RMS acoustic output in same conditions with IEC weighted noise (limited by driver unit protection circuit) @ 1m.

Self-generated noise
≤5 dB SPL
Self generated noise level in free field at 1m on axis (A-weighted)

Enclosure

Enclosure material
Die cast aluminium

Enclosure type
Reflex port

Drivers

BASS

Driver type
Cone

Diameter
130 mm (5 1/8 in)

TREBLE

Driver type
Metal dome

Diameter
19 mm (3/4 in)

Harmonic distortion
50…100 Hz ≤2 %
> 100 Hz ≤0.5 %

Amplifiers

8030C bass amplifier
50 W Class D

8030C treble amplifier
50 W Class D

Mains voltage
100-240 VAC 50/60Hz

Power consumption

ISS Active
≤0.5 W

Idle
≤3 W

Full output
60 W

Connectors

Input
Analogue signal input connector XLR female, balanced 10 kOhm.

Crossover

Bass/Treble
3000 Hz

Dimensions
285 (with Iso-Pod 299 mm) x W 189 x D 178 mm

Weight
5 kg each

Finishes
White
Dark Grey
Raw
Black (Special Order)

Warranty
Includes a 2-year warranty, plus an additional 3-year extended warranty when registered on MyGenelec.

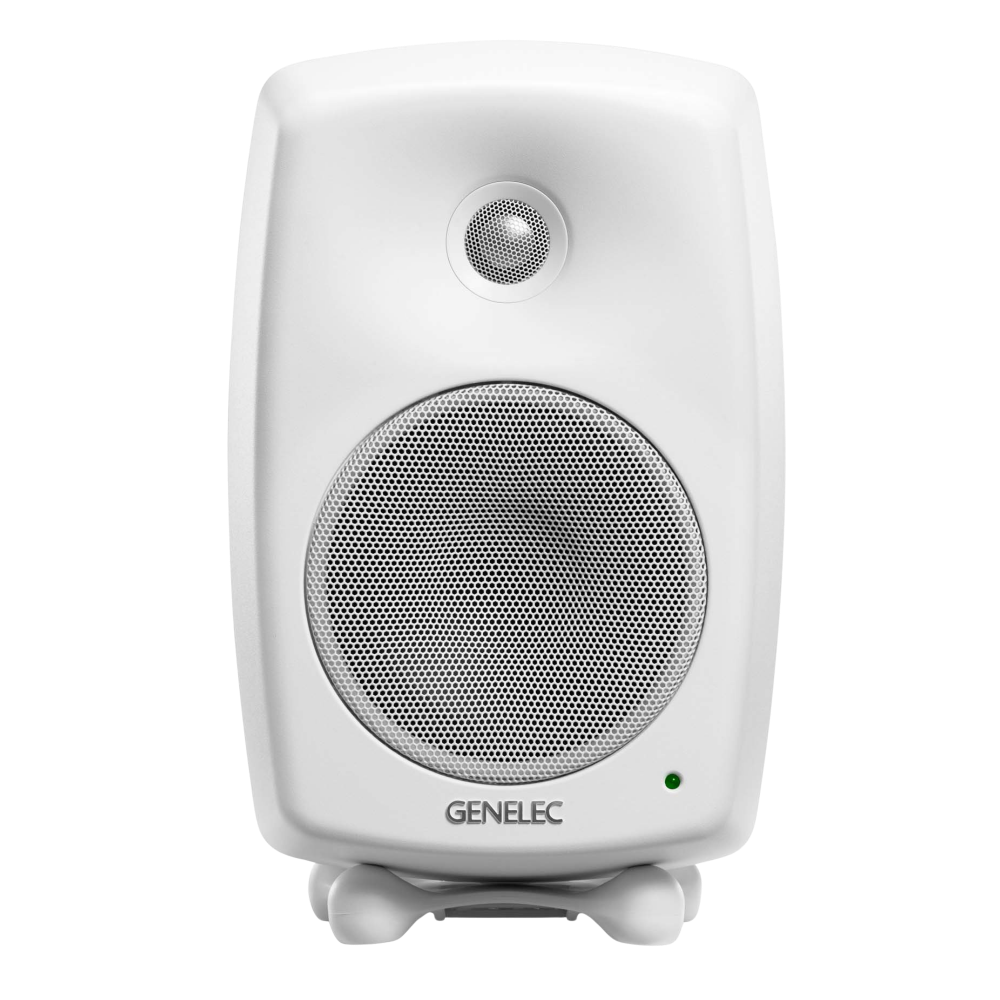

genelec-classic-series-8030c-5-inch-two-way-active-studio-monitors-white-individual-front-hero-stereophonic.png

In the Box

2 x 8030C monitors
1 x mains cable 1,8 m
1 x operating manual
1 x IsoPod kit



*This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change without notice.

E&OE



Includes a 2-year warranty, plus an additional 3-year extended warranty when registered on MyGenelec.
