Presenting the New AVA35 AV Amplifier - it's coming soon, pre order now
Uncompromising Sound and Unique Flexibility
For those of us who refuse to compromise, the AVA35 represents the summit of home cinema and musical performance. This is not just an amplifier, it’s ARCAM’s most advanced integrated AV solution, designed for true connoisseurs of sound.
Expertly engineered in Cambridge, UK, the AVA35 harnesses Arcam's signature Class G amplification, a technology unique to ARCAM and revered for its ability to deliver superior power, lower crossover distortion and unmatched musicality.
Combined with the same high-performance DAC architecture found in their flagship stereo systems, the AVA35 ensures every note and every cinematic moment is rendered with breathtaking clarity and emotional impact.
For the ultimate in flexibility, the AVA35 introduces matrix channel assignment, allowing you to reallocate channels freely for the most personalised and immersive configurations. Whether it’s music, movies, gaming, or sport, this amplifier adapts to your vision of perfection.
With nine channels of Class G power, 16-channels of Dolby Atmos, DTS:X, IMAX Enhanced and AURO-3D processing as well as Dirac Live room correction, the AVA35 transforms your space into a world-class listening environment.

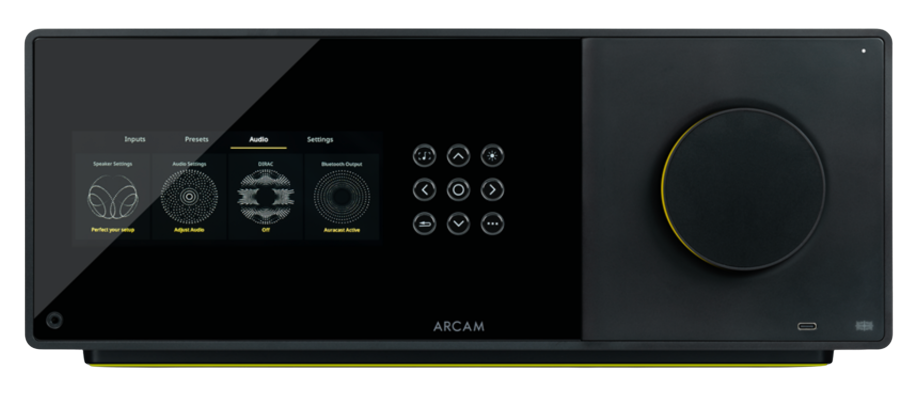

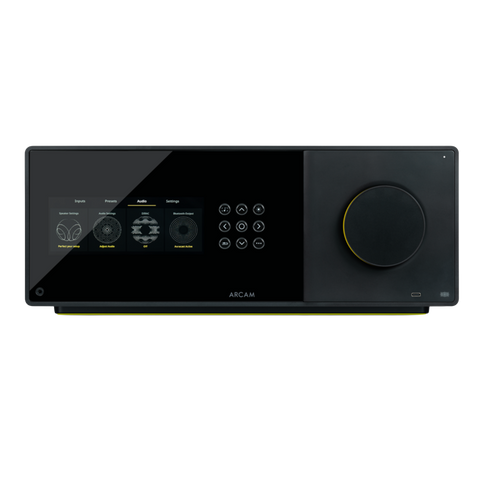

At ARCAM, sound quality isn’t just a promise, it’s an obsession. The AVA35 is the pinnacle of rigorous testing and listening sessions, more than deserving of the ARCAM name. The AVA35 comes complete with a vibrant 6.5" colour display, intuitive menus and the Radia App, control is effortless, because the experience should be as seamless as the sound.
Product Features
- High power ARCAM Class G Amplification.
- Dolby Atmos - Bring even the smallest details to life with sound that moves in all directions.
- DTS:X and IMAX Enhanced, place sound where it would occur naturally in space, creating the most lifelike, multi-dimensional audio experience ever.
- AURO-3D A revolutionary way of delivering audio that wraps you in a cocoon of life-like sound.
- Matrix Channel Assignment for the flexibility to assign up to 16-channels for the best performance of your system
- Dirac Live Room Correction for exceptional, calibrated audio in any room - upgrade with Dirac Live Bass Control and Dirac Live Active Room Treatment
- Back-lit, Bluetooth remote control for continuous out-of-sight control
- Works with the new ARCAM Radia app for setup, control, Internet Radio, Podcasts and UPnP playback from iOS, Android and Windows devices and PCs.
- Supports Apple Airplay, Google Cast, Spotify Connect, Tidal Connect and Qobuz Connect Works with Apple and Android devices, with direct connection from lossless music services
- Bluetooth with Snapdragon Sound and Auracast for the best wireless sound with the most convenience
- Large High-resolution display for clearly visible status and metadata from the comfort of your main listening position
Technical Specifications
DECODING / ENCODING
Maximum Channel Count
16
Reassignable Channels
All channels (Subwoofers into CH4 & 11-16 only)
Supported Decoding and Encoding
Dolby Atmos, Dolby TrueHD, Dolby Atmos Height Virtualisation, Dolby Surround
DTS:X, DTS HD Master, DTS Neural:X, DTS Virtual:X
MPEG H
IMAX Enhanced
AURO-3D, AURO-2D
HDMI
Inputs/Outputs
7/3 (Zone 1 outputs = 2, Zone 2 outputs = 1)
HDMI/HDCP Versions
2.1a/2.3
Resolution support (resolution/framerate)
Up to 8K/60Hz or 4K/120Hz
Supported Dynamic Range Profiles
HDR, HDR10, HDR10+, HDR10+ Gaming, Dolby Vision, HLG
Supported HDMI features
Variable Refresh Rate (VRR), Auto Low Latency Mode (ALLM), CEC, eARC/ARC (Zone 1, Output 1) On Screen Display
STREAMING
Works with (apps)
ARCAM Radia Control, Spotify Connect, Tidal Connect, Qobuz Connect, Roon (Ready)
Works with (services)
Apple Airplay, Google Cast ARCAM Radia supported services, Internet Radio, Podcasts, UPnP
Supported Hi-res media
FLAC, WAV (LPCM), MQA, AAC, ALAC, AIFF, MP3, OGG, WMA
Gapless Playback Supported
Supported Hi-res Bit depth
16, 24
Supported samples rates (kHz)
Up to 192 kHz
Frequency response
20Hz—20kHz ± 0.05dB
DIGITAL INPUTS
Number of inputs (Coaxial/Toslink)
2/2
Supported Sample Rates (kHz)
Coaxial (RCA)
192, 176.4, 96, 88.2, 48, 44.1
Optical (Toslink)
96, 88.2, 48, 44.1
Bit depths (bit) (Coaxial/Toslink)
24, 16
Frequency response
20Hz—20kHz ± 0.2dB
Signal/noise ratio (A-wtd, ref. 50W, 0dBFS)
100dB
ANALOGUE INPUTS
Number of inputs
3 (RCA pairs)
Signal/noise ratio (A-wtd, ref. 50W, 1V input)
100dB
Frequency response
20Hz—20kHz ± 0.2dB
PREAMPLIFIER OUTPUTS
Number of Outputs RCA/XLR
16/0
Single-ended (RCA) peak output level per channel
2V RMS
THD+N (20 Hz to 20 kHz)
–100dB
AMPLIFICATION
Amplifier Channels
9, Class D
CONTINUOUS POWER OUTPUT (0.5% THD)
8O, 20Hz - 20kHz, 2 channels driven
145W
4O, 1kHz, 2 channels driven
200W
8O, 20Hz - 20kHz, 7 channels driven
110W
4O, 1kHz, 7 channels driven
130W
Harmonic distortion @80% power, 8O at 1kHz
0.004%
GENERAL
Mains voltage (V/Hz)
100–120V or 220–240V, 50–60Hz
Max Power consumption
900W
Max Thermal dissipation
3070 BTU/hour
Idle Power consumption
93W
Idle Thermal dissipation
320 BTU/hour
Standby Power consumption (Default/Low Power
2W/0.4W
Dimensions W x D (including speaker terminals) x H (including feet)
432 x 459.1 x 170 mm
Weight (net)
22.7kg
Weight (packed)
29.4kg
WIRELESS SPECIFICATIONS
Bluetooth Version
5.4
Bluetooth Profiles
A2DP Sink/Source, AVRCP, Snapdragon Sound, AAC, LE Audio, Auracast, GATT, VCP, MCP, BAP, CAP
Bluetooth Transmitter Frequency Range and Power
2,402 MHz to 2,480 MHz <Max 10.73dBm
Wi-Fi Network
IEEE 802.11 a/b/g/n/ac (2.4GHz/5GHz)
2.4G Wi-Fi Transmitter Frequency Range and Power
2.400 GHz to 2.4835 GHz < Max 17.4dBm
5G Wi-Fi Transmitter Frequency Range and Power
5.15-5.35GHz, 5.47-5.725GHz, 5.725-5.875GHz, < Max 19.26dBm
Supplied accessories
Region Specific Power Cord(s)
Rear panel cowl
Remote control with 2 x AAA batteries
Measurement Microphone
5m USB Cable
Quick Start Guide
Important Safety Instructions
*This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change without notice.
E&OE
