Audiolab 7000A Integrated Amplifier
- Availability:
- Usually Ships in 48 - 72 Hours
- Shipping:
- Free Shipping
Description

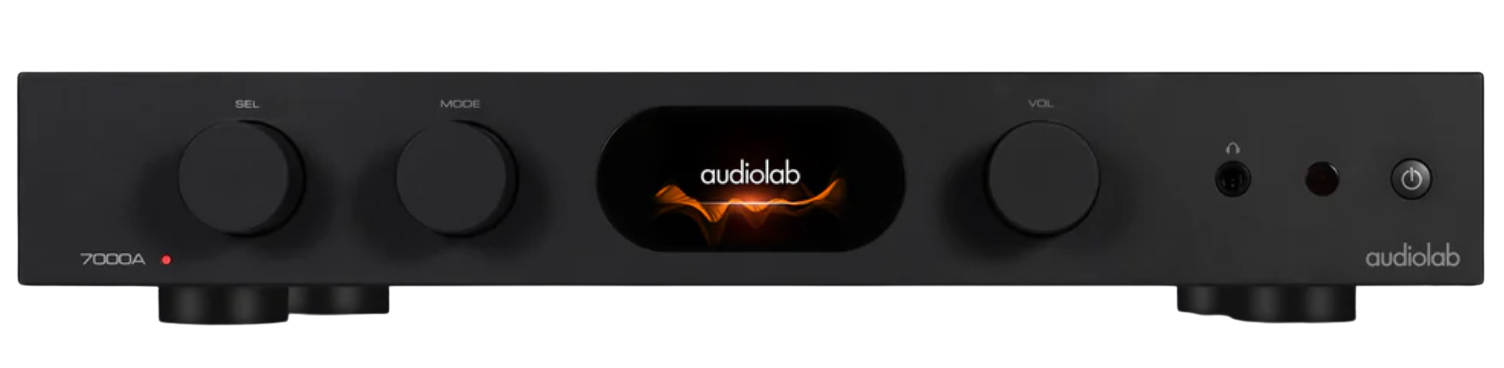

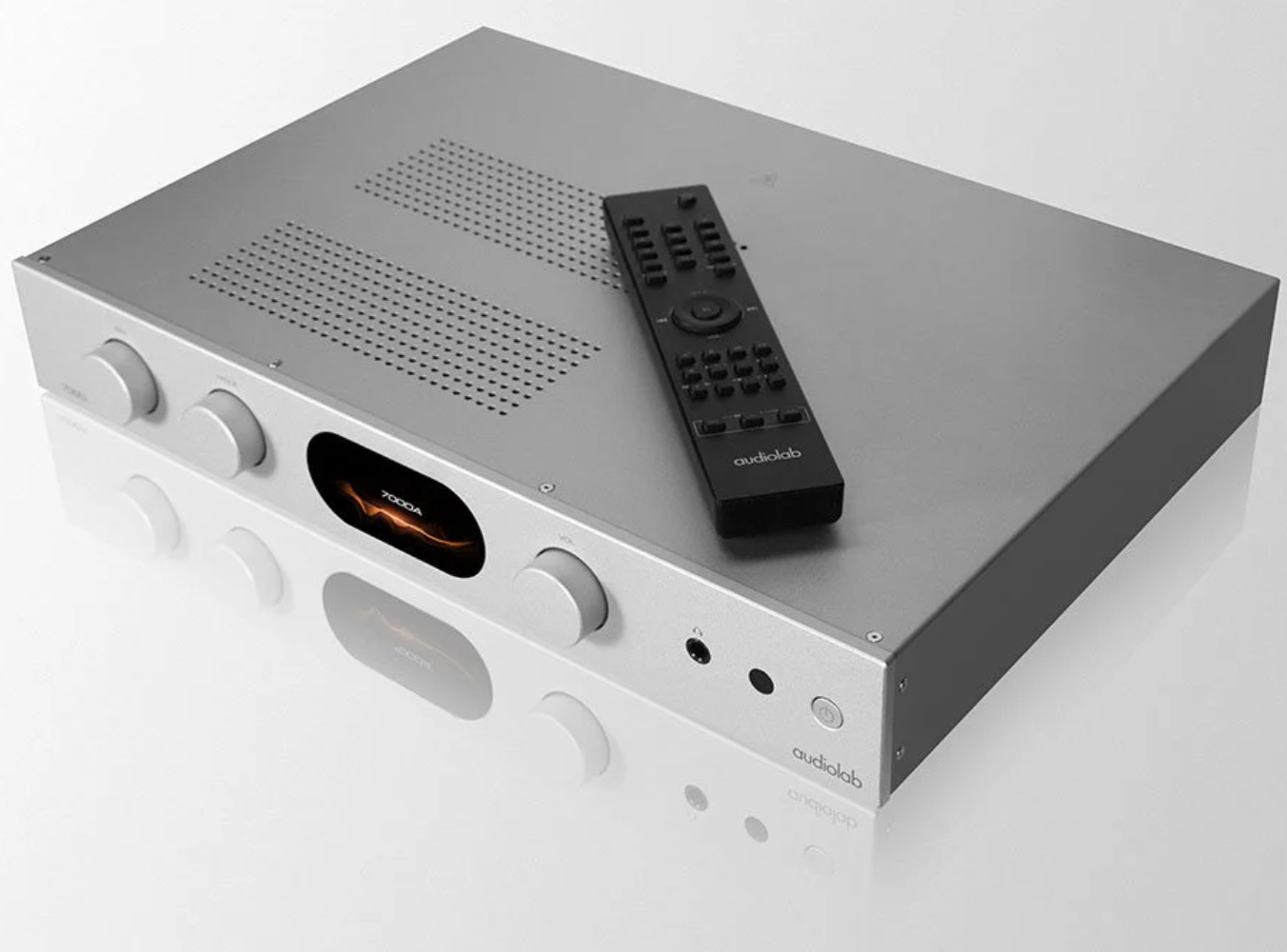

Meet the 7000A Integrated Amplifier
Brought to you by Audiolab
Nestled between the 6000 and 9000, the 7000 fuses premium characteristics into a pricing category that follows the mantra of class-leading performance.
The audiolab 7000A improves on the 6000A with a genuine 70W per channel output, new DAC as well as a new full-colour IPS LCD screen and more!
More compact than the 9000 series, it maintains crisp ergonomics, high-quality engineering, a wide range of facilities and excellent all-around acoustic performance and connectivity.
Classes of A and B
Audiolab pulls no punches with the genuine nature of their power rating. The 7000A’s discrete Class AB power Amp stage delivers 70W per channel into eight ohms, with a maximum current delivery of 11A amps into difficult loads.
A new standard in Audiolab amplifiers, the output stage of the discrete power amp circuits uses a CFB (Complementary Feedback) topology, ensuring superior linearity and excellent thermal stability, as the idle current is kept independent of the temperature of the output transistors. The newly developed power supply features a substantial 250VA toroidal transformer, followed by 4x15000uF reservoir capacity (60000uF in total), which helps the amp to maintain firm control of the music whilst enabling excellent dynamic range.
Name Your Source
Whatever the input source – analogue, digital, wireless or TV – the 7000A has been crafted to the same level of detail we've come to expect from Audiolab, all with the latest tech while maintaining a price point that keeps the Audiolab brand at the forefront of quality and affordability in home audio.
Dual analogue inputs cater for CD players and line-level sources, dual Coax and SPDIF inputs expand this for the digital sources while a Bluetooth aptX receiver serves up a solution for wireless audio playback and smart devices.
Audiolab's 7000A Integrated Amp even takes connectivity to a new dimension with a built-in Audio Return Channel (ARC) connection for use with screens to TV-app based music playback and home theatre. There's also direct-to-PC connection via USB.
Flagship DAC
As is standard with Audiolab integrated amplifiers, the 7000A reaffirms the natural integration and synergy with an ESS ES9038Q2M chip. The 7000A utilises ESS Technology’s 32-bit HyperStream architecture and Time Domain Jitter Eliminator. As with the 9000A, the 7000A uses a post-DAC filter based upon Class A topology and proprietary DC-coupled high-gain electronic amp designs to deliver ultra-low noise and high dynamic range.
Streaming Technology
The 7000A Integrated Amp also delivers full decoding of MQA, meaning the complete ‘three unfold’ decoding process is performed internally, as opposed to just the final unfold in the manner of an MQA ‘renderer’, making the 7000A an excellent system choice for subscribers to Tidal’s ‘HiFi Plus’ tier where Tidal Masters (MQA) content can be found.
Tables Are Turning
The 7000A's improved phono stage for moving magnet phono cartridges – using an updated version of the high-quality, low noise MM Phono circuit and precise RIAA equalisation sets the benchmark in ‘built-in’ phono preamplifier solutions.
Same with the dedicated headphone output. Enhancing the versatility claims of the 7000 series, the dedicated headphone amp with current-feedback circuitry caters for the head-fi that lurks in the audiophile! Its gain bandwidth and high slew rate ensure a dynamic, detailed and engaging performance with all manner of headphone types.

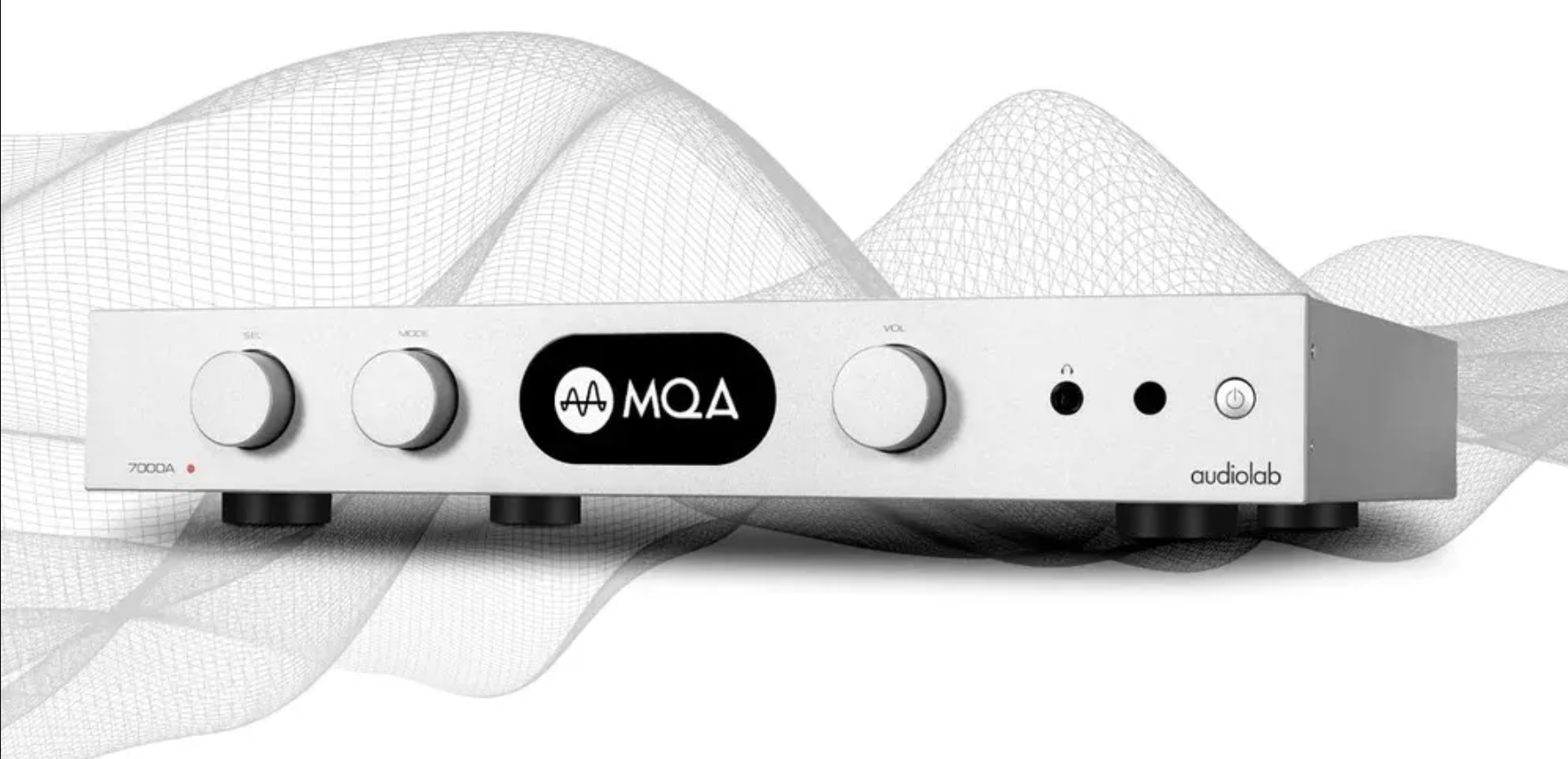

MQA All The Way
Enjoy The Aptx-Factor
ROON
The Audiolab 7000A is Roon tested, opening up to the world of Roon. Roon’s fundamental goal is to provide a consistently stellar user experience. It offers features like bit-perfect playback, DSD and PCM upsampling, multichannel playback, and signal path display
Satisfying Graphics
The 7000A incorporates (DPLL), brightness and operational modes. It can even be set to display a VU meter in ‘analogue’ or ‘digital’ form; showing real-time decibel levels for the left and right channels – a satisfying graphical representation of the music as it plays.
The Audiolab 7000A delivers with remarkable sonic consistency, a plethora of source and connectivity options and crisp styling. Regardless of the source material and format, the 7000A is lively and engaging but also never loses focus on the musicality and detail. Broadness, depth and toe-tapping rhythm are assured.
Technical Specifications
General Description
Integrated Amplifier
Design Philosophy and Core Technology
2x50W (8 ohms) / 2x75 (4 ohms)
Class AB Design
ES9038Q2M 32-bit DAC
Bluetooth 5.1 (aptX / aptX HD)
Dedicated High Performance Low Noise MM Phono stage
Dedicated Current-Feedback Headphone Amp
Integrated / Pre-Power / Pre Modes only Modes

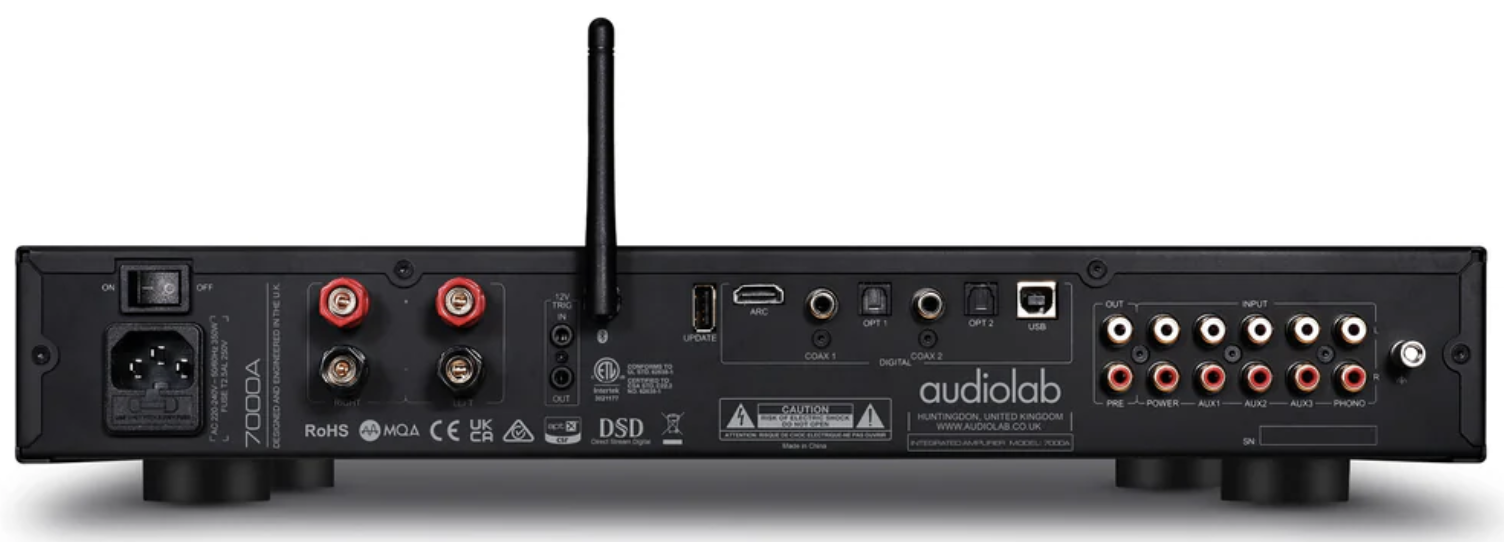

Inputs
3 x Analogue, 1 x Phono (MM), 1 x Power Amplifier,
2 x SPDIF (Coax), 2 x SPDIF (Optical), 1 x HDMI ARC,
1 x Bluetooth (aptX / aptX HD), 1 x 12V Trigger
Outputs
1 x PRE Amplifier, 1 x Stereo Speaker, 1 x Headphone, 1 x 12V Trigger
Sampling Frequency
Optical / Coaxial: 44.1kHz-192kHz
Preamplifier Section
Gain
+8dB (Line); +54dB (Phono MM)
Input Sensitivity
720mV (Line, Volume = 0dB); 3.1mV (Phone MM, Volume = 0dB)
Input Impedance
10K (Line); 47k/100pF (Phono MM)
Total Harmonic Distortion (THD)
<0.0004% (1kHz @ 2V, Volume = 0dB)
Frequency Response
20Hz-20kHz (+/-0.1dB)
Output Voltage
2.3V max. (Volume = 0dB)
Output Impedance
120 ohms
Signal-to-Noise Ratio
>110dB (Line, A-weighted); > 79dB (Phono MM, A-weighted)
DAC
D to A Converter
ES9038Q2M
Total Harmonic Distortion (THD)
<0.001% (1KHz @ 0dBFS)
Output Level (OdBFS, 1kHz)
2.05Vrms
Max.Sampling Frequency
Optical, Coaxial: 192kHz
Signal-to-Noise Ratio
>110dB (A-weighted)
Power Amplifier Section
Gain
29dB
Rated Power Output
2 x 50W (8 ohms, THD<1%); 2 x 75W (4 ohms, THD<1%)
Frequency Response
20Hz-20kHz (+/-0.3dB)
Total Harmonic Distortion (THD)
<0.003% (1kHz @ 50W / 8 ohms)
720mV
Signal-to-Noise Ratio
>109dB (A-weighted)
Max. Output Current
11A
Finishes
Black
Silver
Dimensions (W x H x D)
444 x 65 x 299 mm - including feet, terminals and controls
