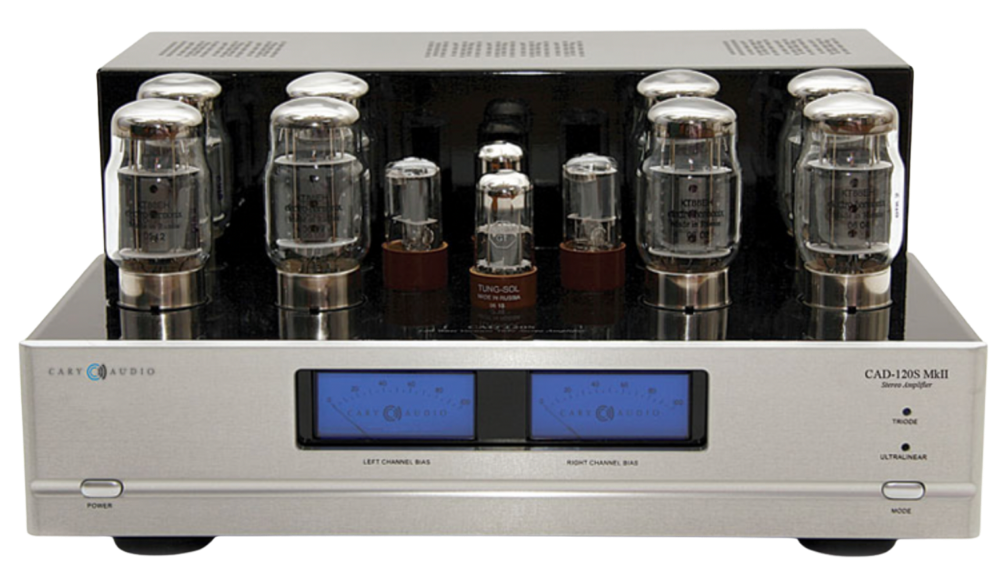

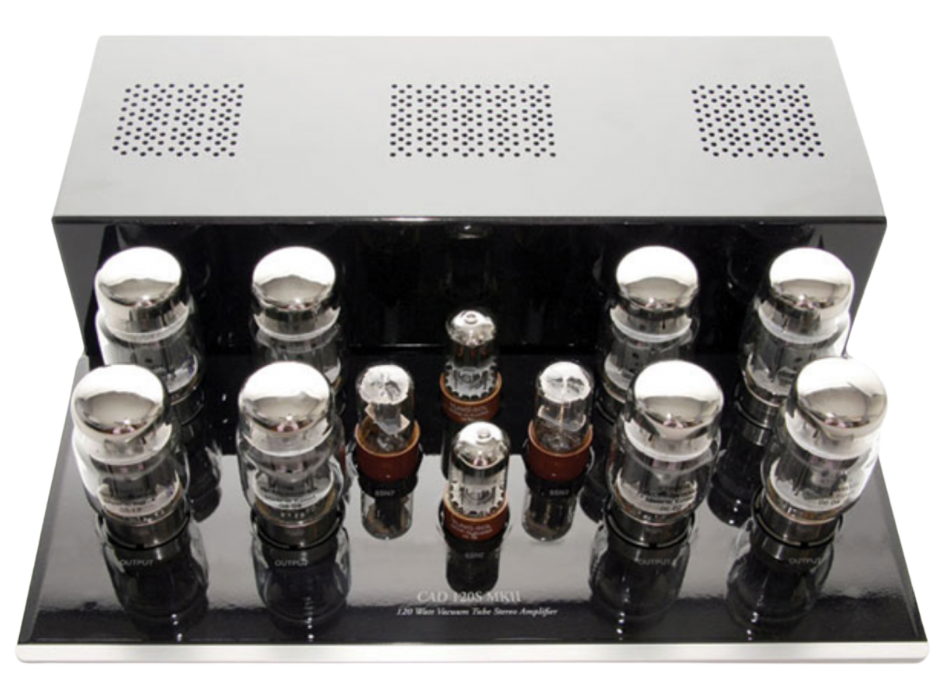

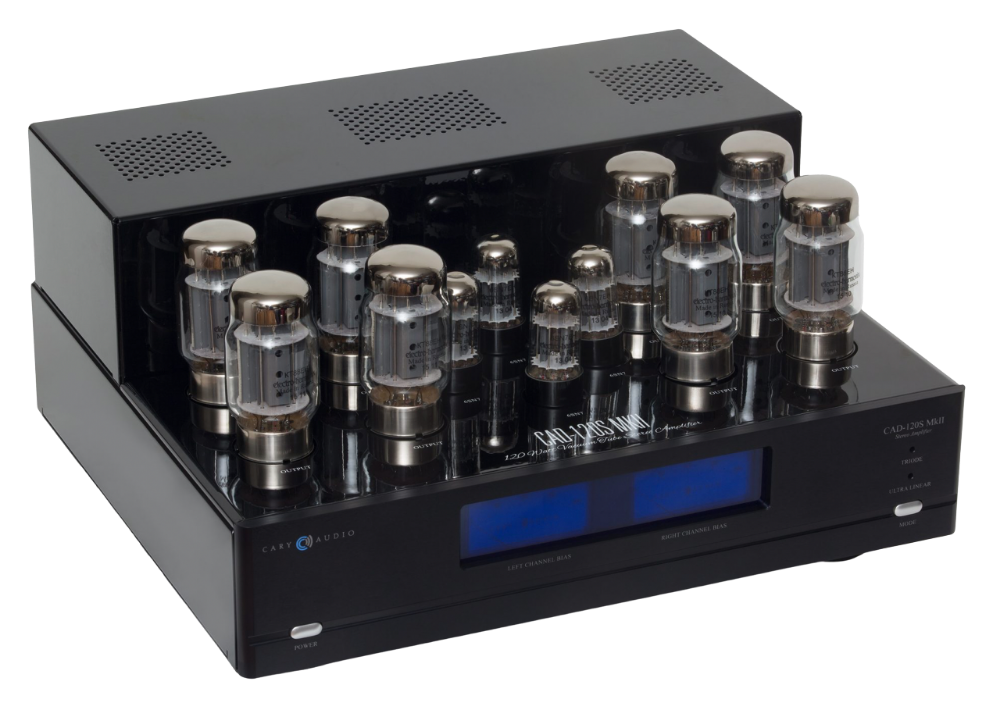

Introducing the CAD-120S MKII
Power and finesse at its best!
The CAD-120S MkII is a fully balanced stereo tube amplifier that combines power and finesse to create an unforgettable listening experience.
Boasting a fan-favourite status, this amplifier offers the best of both worlds with the flexibility to operate in pure Class A at 60 watts per channel or switch to Class AB for an impressive 120 watts per channel.
With the simple press of a button, you can tailor your sound to your preferences, whether you crave a richer, warmer presentation for late-night listening sessions or desire greater dynamics and bass punch for rocking out to your favorite tunes.
Versatile and adaptable, the CAD-120S MkII effortlessly complements any preamplifier, delivering a captivating sound that invites you to immerse yourself in the music. Sit back, relax, and let the CAD-120S MkII transport you into a world of pure audio bliss.
Product Features
- This innovative stereo power amplifier is rated at 60 watts per channel in triode mode and 120 watts per channel in ultra linear mode into an 8 ohm speaker load.
- Anthracite black chassis with silver or black anodized aluminium front panel.
Cary Audio
Since its founding in 1989, Cary Audio has stayed at the forefront of home entertainment equipment by stubbornly adhering to the principles of quality and musicality upon which it was founded. It’s not enough just to be able to build great-sounding gear, but it needs to be well-made, reliable and maintain its performance and value for many years.
Cary Audio has evolved into a powerhouse offering solid-state home theatre and digital source gear. Their commitment to quality and performance remains unwavering as they continue to push boundaries with cutting-edge innovations.
Technical Specifications
Circuit Type
Class AB push-pull amplifier
Ultralinear or Triode mode operation with front panel selector switch
Power Output
Ultralinear: 120W per channel
Triode: 60W per channel
Inputs
XLR Balanced
RCA Single-Ended
Gain
28dB
Sensitivity
1.24V
Input Impedance
100kΩ (RCA and Balanced)
Noise and Hum
-80dB
Frequency Response
17Hz – 25kHz (flat @ 1W)
Tubes
2 × 6SN7 Input Gain Stage Tubes
2 × 6SN7 Driver Tubes
8 × KT88 Output Tubes
Power Transformer
EI high-voltage & bias supply transformer (EI laminate)
Output Transformers
Special bifilar-wound transformers (150W rating per channel)
Power Supply Capacitors
4 × 560µF
Speaker Terminals
Cary gold-plated copper 5-way binding posts
AC Cord
3-conductor shielded, detachable
AC Power Requirements
117VAC @ 50/60Hz
234VAC @ 50/60Hz
Warm-Up Time
3 minutes
Break-In Time
100 hours of playing time
Dimensions (H × W × D)
203 × 432 × 356 mm
Finishes
Black
Silver
*This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change without notice.
E&OE
