Michi by Rotel

Michi M8 Mono-Block Power Amplifier

Availability:
Usually Ships in 48 - 72 Hours
Shipping:
Free Shipping
  • Michi M8 Mono-Block Power Amplifier, front
  • Michi M8 Mono-Block Power Amplifier
$10,999.00

Description

Meet the Michi M8 Mono-Block Power Amplifier


Stunning control and authoritative power. Price is for individual Unit.

The stunning control and authoritative power of the Michi M8 Monoblock Amplifier is the result of a perfect balance of science meets art delivering 1,080 watts of Class AB power into 8 ohms and an astounding 1,800 watts to the most demanding 4 ohm loudspeakers. The M8 is powered by a pair of custom engineered, low noise, in-house manufactured toroidal transformers supported by 4 British patented slit foil, high efficiency, low ESR bulk storage capacitors for impactful bass with exceptional control under extreme loading conditions.

To achieve accuracy and its unsurpassed performance, the M8 is equipped with an array of 32 high current output transistors thus reducing the load on individual components and maintaining the crucial energy, rhythm and timing throughout the amplification stages. Musical expression and detailed refinement were further accomplished through acoustic tuning of all critical components and a balanced circuit design.

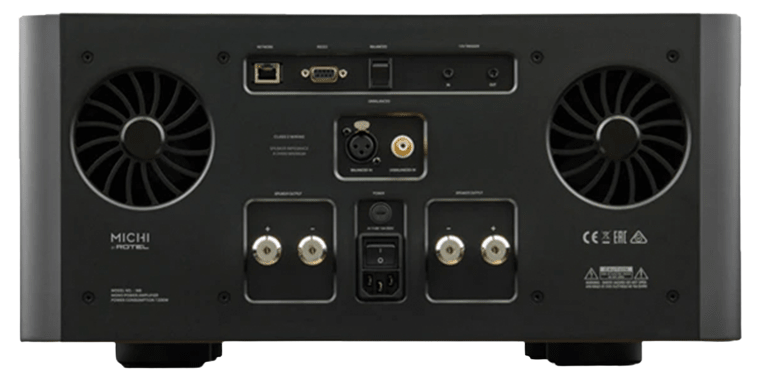

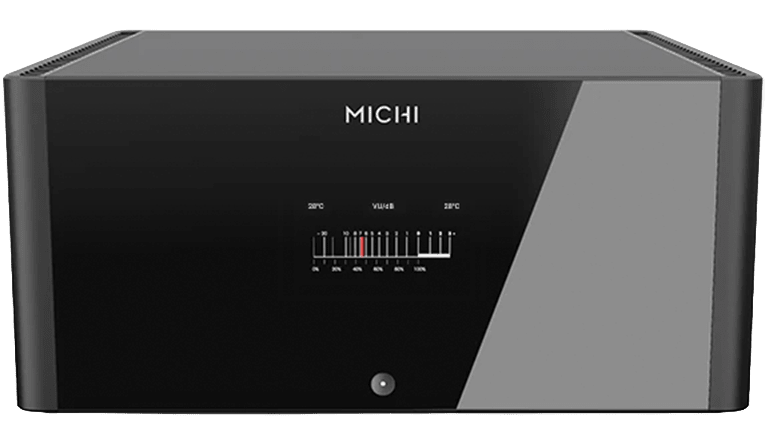

A high resolution display adorns the front panel supporting a peak power meter or spectrum analyzer. With XLR and RCA inputs, 2 sets of custom Michi speaker binding posts, remote control and fully featured RS232 and Ethernet connections the M8 provides ultimate installation flexibility. Power amplification at its best in the most elegant of industrial designs.

About Michi

Michi is a flagship series of products built on the proud history and heritage of Rotel. Michi represents over 55 years of experience coupled with the passion of a family business and ever-growing family of satisfied product owners.

Acoustic Elevation. Sonic Evolution. Visual Perfection.

Michi, because it's their reputation and that's personal.


Technical Specifications

Amplifier Class
AB


Inputs
Balanced XLR
Single Ended RCA

Continuous Power Output
1,080 Watts per Channel into 8Ω
1,800 Watts per Channel into 4Ω

Total Harmonic Distortion
<0.018%

Frequency Response
20Hz - 20kHz (+0dB, -0.15dB)
10Hz - 100kHz (+0dB, -0.5dB)

Signal to Noise Ratio (IHF “A” weighted)
120dB

Gain
Unbalanced: 34dB
Balanced: 30dB

Intermodulation Distortion (60Hz:7kHz, 4:1)
<0.03%

Damping Factor
200

Speaker Impedance
4Ω minimum

Input Sensitivity
Unbalanced: 1.85V
Balanced: 3V

Input Impedance
Unbalanced: 12.5kΩ
Balanced: 100kΩ

Power Consumption
1200W

Standby Power Consumption
Normal: <0.5W
Network Wakeup: <2W

Dimensions (W x H x D)
485 x 238 x 465 mm



*This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change without notice.

E&OE

View AllClose

Warranty Information

5 Years
