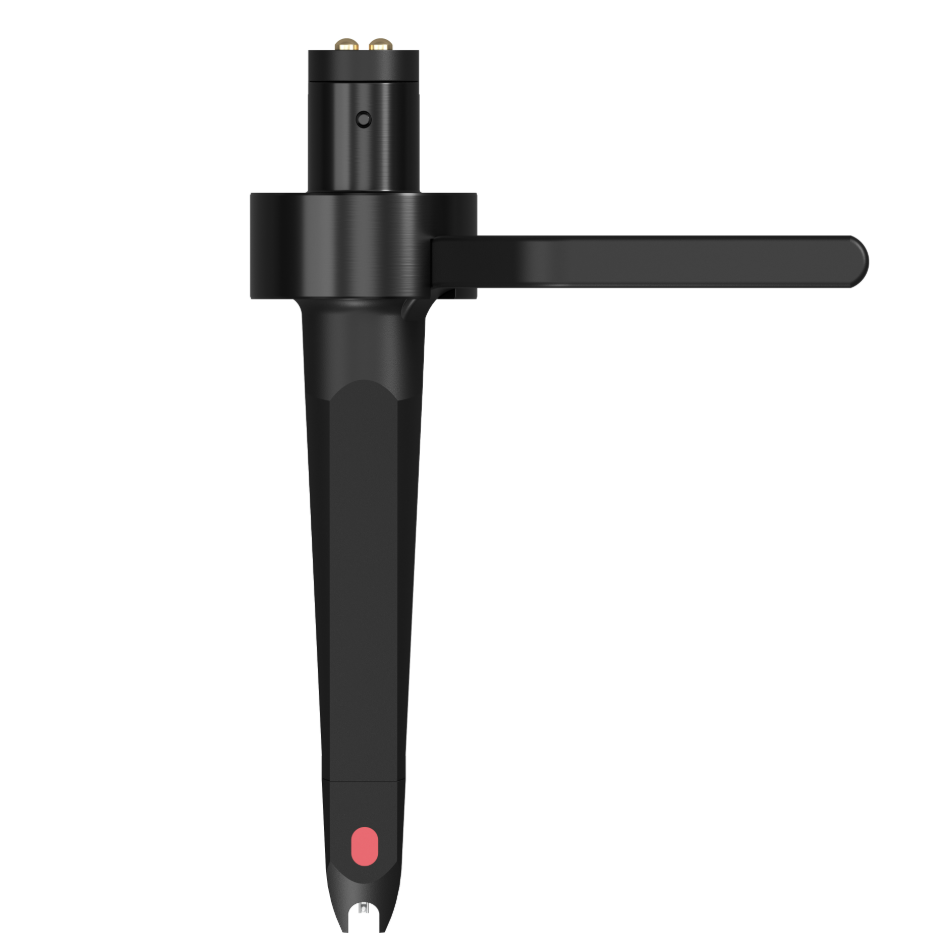

Ortofon Concorde 5E Moving Magnet Cartridge
- Availability:
- Usually Ships in 48 - 72 Hours
- Shipping:
- $19.95 (Fixed Shipping Cost)
Description
Introducing the Concorde 5E Moving Magnet Cartridge
Quality, Simplicity and Iconic Design brought to you by Ortofon Hi-Fi.
Step into the world of Ortofon Concorde with the 5E MM Cartridge, combining trusted performance and the timeless aesthetics of the award-winning Concorde MkI design.
Positioned just below the premium Concorde Music Series, the Concorde 5 Series offers an ideal entry point into high-quality vinyl playback.
A Smart Choice for Vinyl Enthusiasts
While the Concorde Music series represents Ortofon’s most advanced design, the Concorde 5 Series stays true to the classic Concorde MkI legacy, offering a proven, no-fuss solution for those who want a trusted sound experience at an excellent value.
Whether you looking for precision and detail or durability and smooth tracking, the Concorde 5 Series makes high-quality vinyl playback more accessible than ever - all while preserving the iconic Concorde design that audiophiles and DJs have trusted for decades.
Future Proof Upgrade Path
The Concorde 5 models offer a seamless upgrade path as they are fully compatible with Stylus 5S, 5E, 10, 20, 30 and 40. Upgrading the stylus allows you to enhance your listening experience and achieve even higher performance.
Compatibility
Mounting the Concorde 5 cartridges to your turntable is simple and user-friendly - no additional tools are needed, ensuring a smooth setup experience. Its built-in bayonet mount allows seamless compatibility with any S-shaped tonearm.
Concorde 5E
The Concorde 5E delivers a refined and detailed listening experience, making it an ideal choice for those who appreciate high-fidelity sound without unnecessary complexity. Equipped with an elliptical diamond stylus, it ensures a premium groove contact, reduced distortion and reveals fine nuances in your records.
- No-tool installation – easily mounts onto the tonearm for a quick setup.
- Elliptical stylus – improves tracking and enhances detail in the music.
- Balanced and natural sound – perfect for music lovers seeking clarity and precision
Technical Specifications
Channel balance at 1 kHz
< 2 dB
Output voltage at 1 kHz, 5cm/sec
4 mV
Channel separation at 1 kHz
> 20 dB
Frequency response 20 Hz - 20 kHz
+/- 3 dB
Compliance, dynamic, lateral
20 µm/mN
Cantilever material
Aluminium
Stylus type
Elliptical Diamond
Stylus tip radius
r/R 8/18 µm
Tracking force, recommended
1.8 grams
Internal impedance, DC resistance
750 Ω
Coil wire material
OFC
Cartridge colour
Black
Cartridge weight
18.5 grams
Recommended load resistance
47 kΩ
*This information has been obtained from Manufacturers website. We advise that Price, Features and Specifications are subject change from Manufacturer without notice.
