Ortofon Cartridges

Ortofon Concorde Black LVB 250 Moving Magnet Cartridge

Availability:
Usually Ships in 48 - 72 Hours
Shipping:
$19.95 (Fixed Shipping Cost)
On Sale

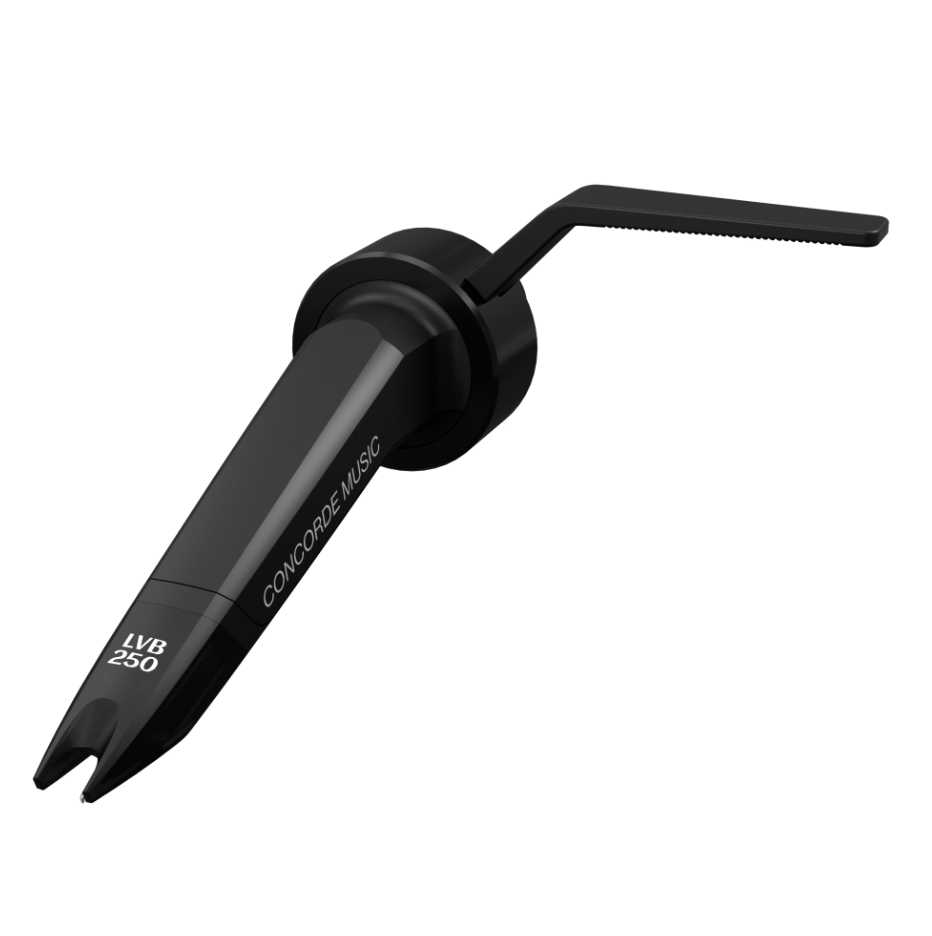

  • Ortofon Concorde Black LVB 250 Moving Magnet Cartridge, top
  • Ortofon Concorde Black LVB 250 Moving Magnet Cartridge, side view
  • Ortofon Concorde Black LVB 250 Moving Magnet Cartridge, underside view
Now: $1,610.00
Was: $1,799.00

Description

Introducing the Concorde Black LVB 250 MM Cartridge


Quality, Simplicity and Iconic Design brought to you by Ortofon Hi-Fi.

Building upon a rich legacy which began when we launched the original Concorde, the Concorde Music holds a storied history as one of the most famous cartridges in the world of audio. Originally developed as a solution to the challenge of easy mounting on a tonearm without screws or wires, the Concorde's unique design earned the Danish Industrial Design Award and became an icon in the audio industry.

Developed by music lovers, for music lovers, the Concorde music cartridges blend premium performance with an iconic design. Concorde Music, not just a cartridge, but a dedication to the profound impact music has on our lives, turning every listening session into a captivating journey.

Easy installation, Easy upgrades

Concorde Music cartridges seamlessly integrate with all turntables featuring a bayonet tonearm, ensuring easy and straightforward installation – no tools required, making it hassle-free and convenient for all users.

All Concorde Music styli are compatible with every Concorde Music cartridge. An upgrade path is possible throughout the entire series of Concorde Music cartridges, enabling upgrades from Concorde Music Red to Black LVB 250.

Concorde Music Black LVB 250

Experience unrivalled accuracy and fidelity with the Concorde Music Black LVB 250. The Concorde Music Black LVB 250 features a Nude Shibata stylus on a Boron cantilever making it the most premium Ortofon Moving Magnet cartridge on the market.

Technical Specifications

Channel balance at 1 kHz
1 dB

Output voltage at 1 kHz, 5cm/sec
6 mV

Channel separation at 1 kHz
26 dB

Frequency response 20 Hz - 20 kHz
+/- 2 dB

Tracking Ability at 315 Hz
80 µm

Compliance, dynamic, lateral
15 µm/mN

Cantilever material
Boron

Stylus type
Nude Shibata Diamond

Stylus tip radius
r/R 6/50 µm

Coil System
Quad-coils with split pole pins

Tracking force, recommended
1.8 grams

Tracking Angle
20°

Cartridge Colour
Black/Black

Coil wire material
OFC

Cartridge colour
Black

Cartridge weight
18 grams

Recommended load resistance
47 kΩ

Recommended load capacitance
150-300 pF



*This information has been obtained from Manufacturers website. We advise that Price, Features and Specifications are subject change from Manufacturer without notice.

E&OE
