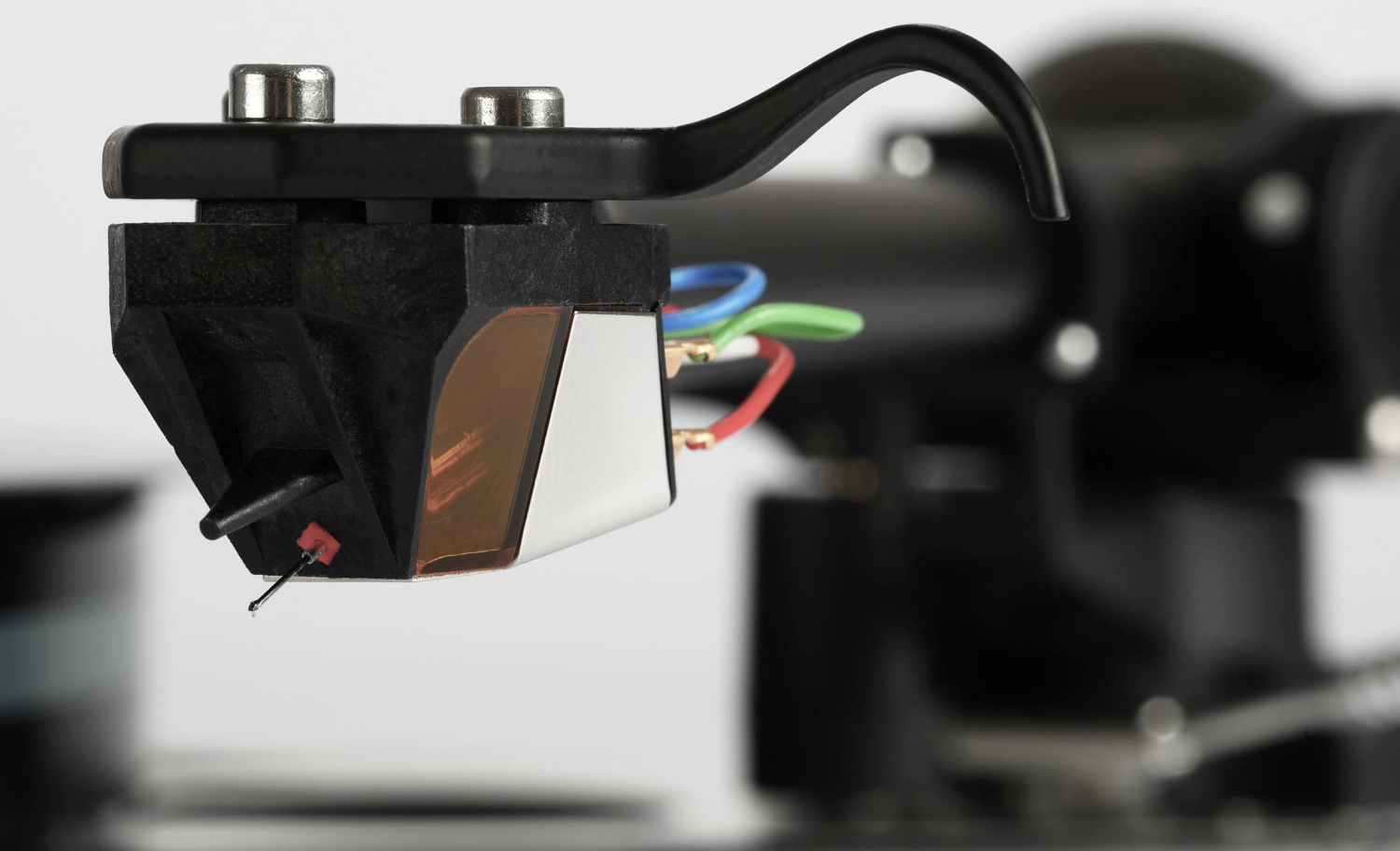

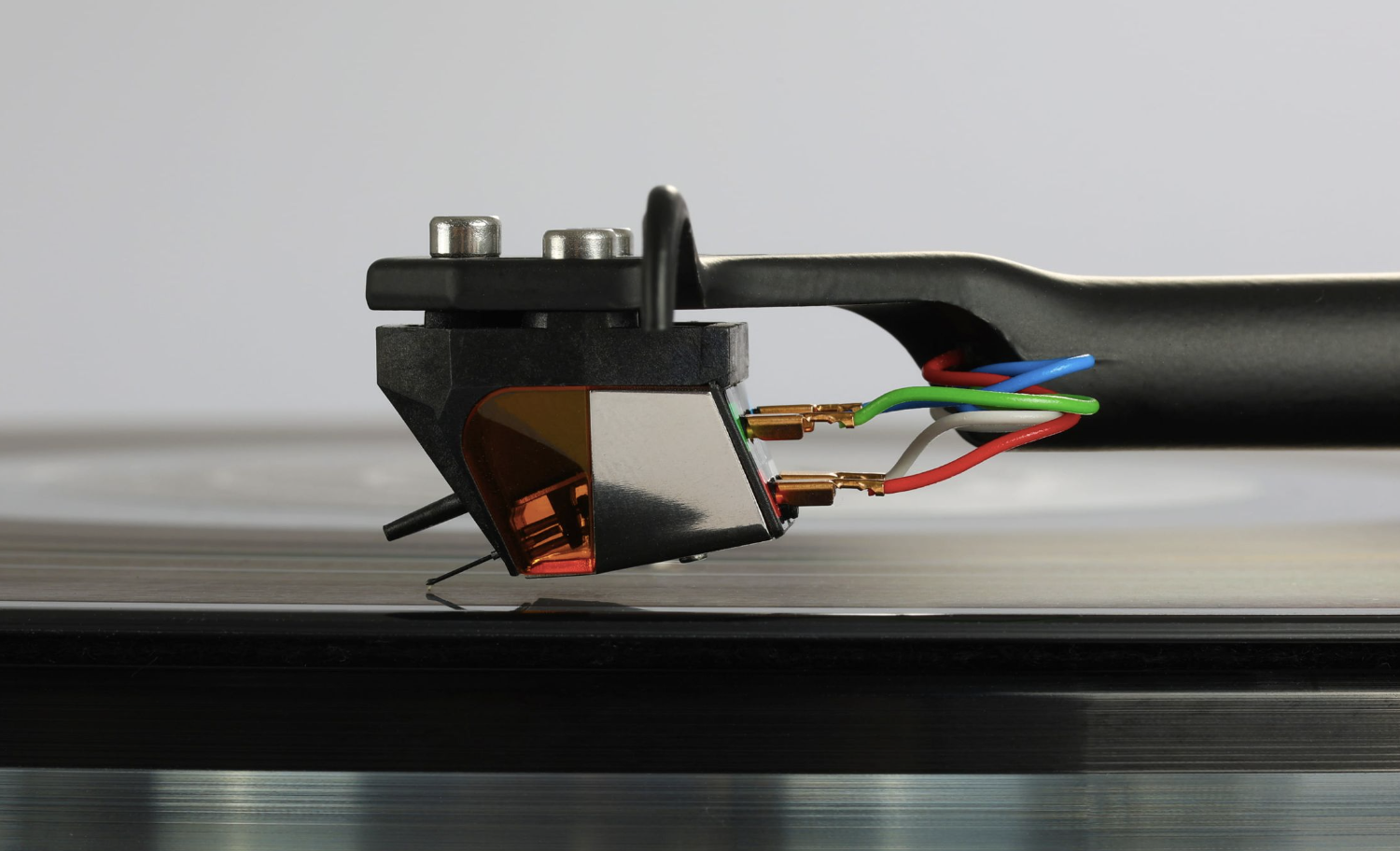

Meet the all New Nd9

With Boron Rod Cantilever...the Devil is in the Detail

The Nd9 cartridge draws on decades of expertise in cartridge engineering and cantilever design to deliver the highest-performing moving magnet cartridge Rega have ever produced.

Their design team has introduced a Boron rod cantilever with a Fine Line stylus profile based on the reference Aphelion 2 moving-coil cartridge for use in the Nd9. The Boron cantilever offers exceptional stiffness and low mass, enabling ultra-fast response and outstanding playback accuracy. The Nd9 is also available as a factory-fitted option on the Planar 8 turntable.

A MASTER OF DETAIL

Each Nd9 is meticulously hand-made by Rega's highly skilled technicians. The Nd9 uses our most advanced “fine line” nude diamond profile, bonded to a Boron rod cantilever for maximum musical detail retrieval.

This profile has an exceptionally small radii Monocrystalline manmade diamond with the minor radius being just 3µm (microns) as viewed from the top and 30µm in the vertical when viewed from the front. This profile allows immediate adjustment to very small changes in the vinyl due to the small contact area of the diamond which results in exceptional levels of detail being retrieved.

The design uses brand new generator geometry with perfect symmetry to achieve highly accurate channel balance.

The Nd9 also has an optimised pole gap for superior linearity and cross talk characteristics, this provides a far wider soundstage than the previous models. This new cartridge is created with miniaturised parallel coils which are wound in house utilising 38-micron wire with just 1275 turns. This produces a low inductance, low impedance generator giving vastly improved high frequency response. In keeping with Rega's commitment to sustainability, the Nd range is supplied in 100% recyclable packaging.

ND MAGNET TECHNOLOGY

Often used in Moving Coil designs Rega's Nd range are the first moving magnets to utilise a Neodymium (Nd) N55 magnet. This is the world’s most powerful commercially available magnet and is a crucial component that makes this unique design possible by delivering extra power than standard bar magnet designs.

BORON CANTILEVER & STYLUS PROFILE

The Nd9 boron cantilever is fitted with a precision perfect fine line nude diamond stylus. This combination provides the ultimate in tracking accuracy and extracts greater levels of detail from the vinyl surface.

The challenge we faced with the Nd9 was connecting the Nd magnet to a solid Boron rod. This was achieved by working with a famous watch maker to manufacture an ultra-fine connecting tube with different diameters at each end. Boron is exceptionally light which allows for faster reaction to the changes in record surface and is highly rigid for its mass. A more rigid cantilever bends less so it transmits motion more accurately with less distortion

FACTORY FITTED OPTION

The Nd9 cartridge will be offered as a factory fitted option on the multi award winning Planar 8 turntable model.  The factory fitted package is offered at a discounted rate compared to when purchased separately, ask your Rega dealer for details.

GLASS FILLED PPS BODY

The complete assembly is housed in the zero tolerance Injection moulded glass filled polyphenylene sulphide body (PPS) which is a lightweight and highly rigid material. A low mass body reduces stress on the tonearm bearings and aids free movement which is critical in accurate vinyl replay. This new body design was inspired by the hugely successful MC range.

• Fine Line nude diamond profile
• Boron cantilever
• Neodymium magnet
• Unique generator

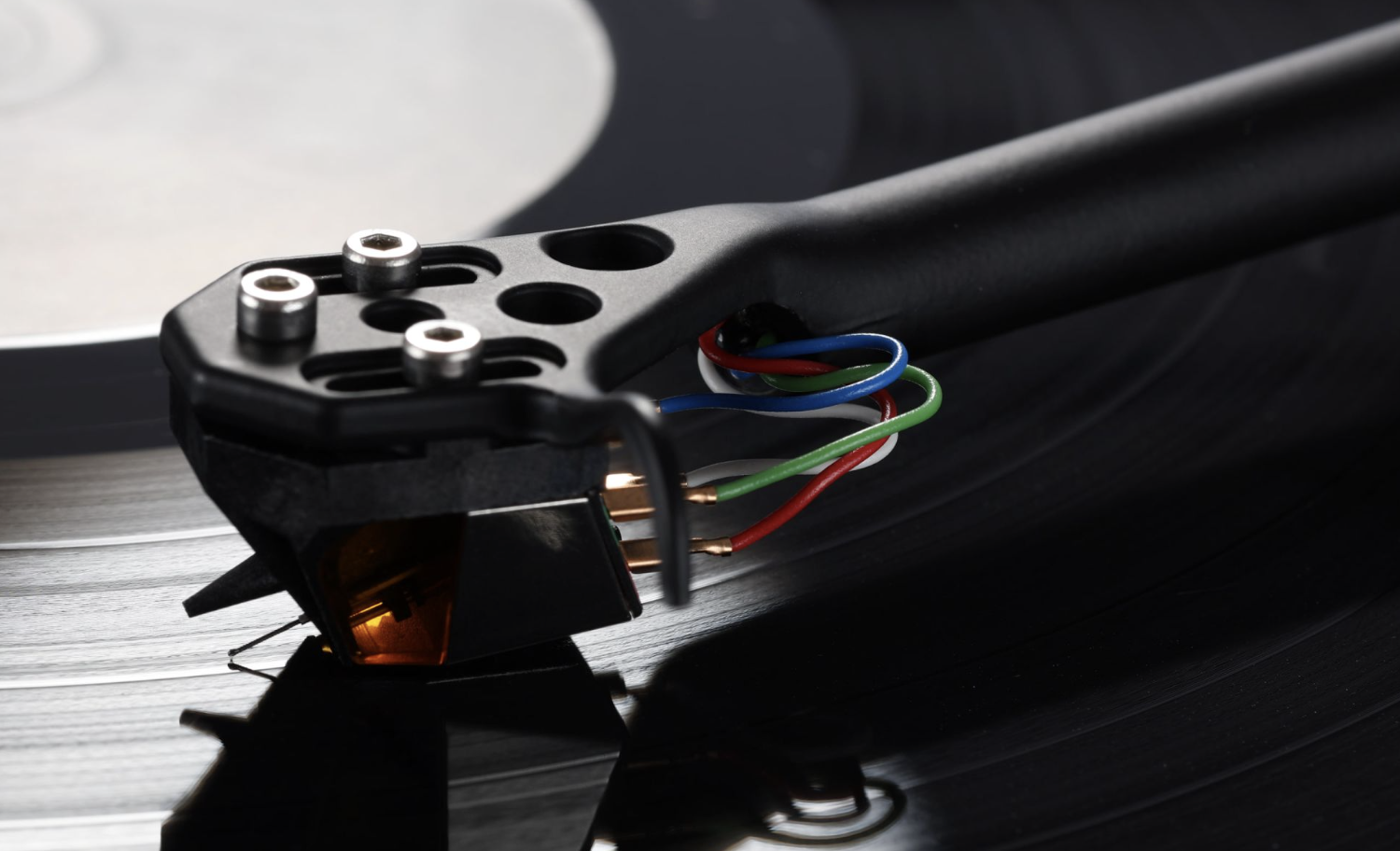

• Rega 3 point mounting system
• Highly rigid PPS body
• Handmade stereo cartridge
• 100% recyclable packaging
• Available factory fitted on the Planar 8 turntable.
• Lifetime warranty against manufacture defects

Technical Specifications

Tracking pressure
1.75 g

Stylus
Fine Line Nude Diamond Profile

Fixing
3 point fixing (for Rega tonearms only)

Nominal Output Voltage
5-6mV

Coils
Miniaturised parallel coils

Window Colour
Amber

*This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change without notice.

E&OE
