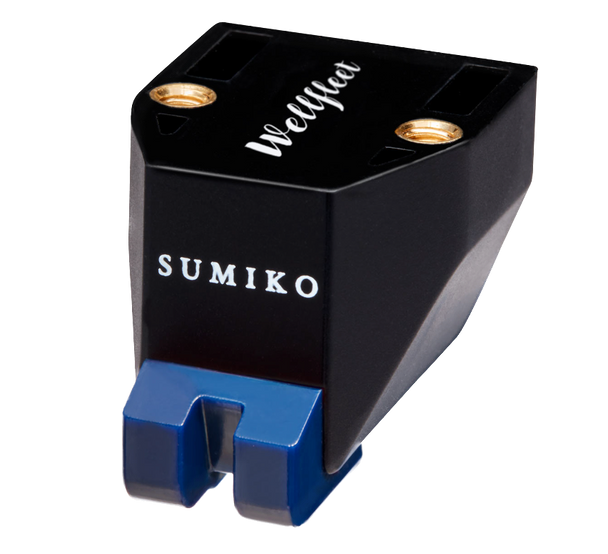

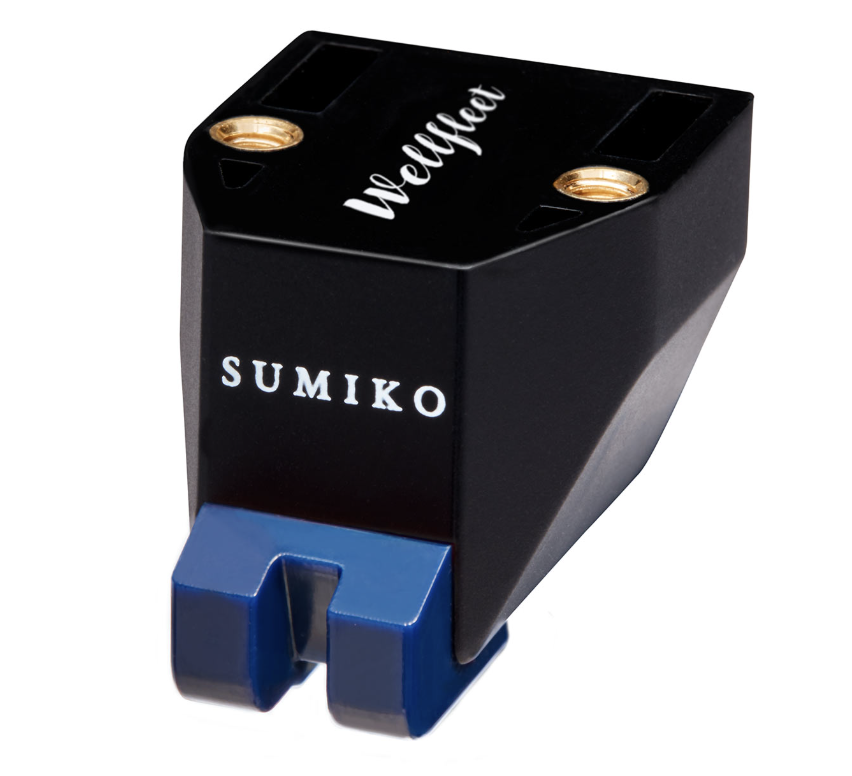

Sumiko Wellfleet High Output MM Cartridge
- Availability:
- Usually Ships in 48 - 72 Hours
- Shipping:
- Free Shipping
Description
Meet the Wellfleet High Output MM Cartridge

Enclosed Superior Architecture from Sumiko
Sumiko Phono Cartridges is pleased to premiere Wellfleet, the newest addition to the Rainier collection. The brand has applied and upgraded its award-winning design of the Moonstone cartridge, retuning the suspension for optimal performance of a nude elliptical diamond with the existing generator and resonance-optimised housing found in the rest of the Rainier series.
Wellfleet utilises a highly polished nude elliptical stylus, eliminating the bonding between the stylus tip and shank. With the new assembly, excessive mass in the shank is cut away to further reduce tip mass, resulting in a faster, more direct, and more accurate response of the stylus’ movement by the cantilever and magnet. Sonically, this increases speed and focuses central images, pulling them toward the listener with a heightened sense for detail.
With the Wellfleet, vocals are immediate, clear and detailed, the warmth of human vocal work becomes more apparent with hints of rasp and emphasised subtleties, boosted by tight and well controlled bass. Backing vocals become easier to discern, and the listener is able to identify distinct instrumentation such as the rattle of snare wires, or the woody twang of a vintage acoustic guitars. Listeners will hear an improvement in surface noise and sense a more distanced backdrop, facilitating a deeply suspended image.
THE IMPORTANCE OF OPTIONS
Flexibility remains paramount in the brand’s offerings. 5 stylus variations capable of utilising this generator are currently available . Rainier owners can upgrade to Olympia, Moonstone and now Wellfleet with a simple stylus swap (and let’s not forget RS 78!).
Designed for discerning, value-minded audiophiles, Rainier, Olympia, Moonstone & Wellfleet supplement and complement Sumiko's existing range of Oysters. They build upon, enhance & refine the sonic character that listeners worldwide have enjoyed for decades.
New innovation in cartridge design addresses the problem of resonance — the things that need to happen around a generator to voice a cartridge with honesty. The housing thusly disperses & dissipates resonance, making way for effortless, transparent sonics that are enlivened with intimate nuance. The voicing is true to natural harmonics, space around voices & instruments as well as their attack & decay. Unique to these 4 Oysters (not to mention Amethyst), experience a diminutive backdrop that bolsters sonic images with a degree of aptitude reminiscent of moving coil designs.
Rainier, Olympia, Moonstone & Wellfleet replacement styli are interchangeable.

HAND CRAFTED IN JAPAN
From Oyster to Reference, each Sumiko phono cartridge is crafted by hand in Yokohama, Japan — near the waters where their namesake Oysters dwell.
In the tradition of the finest craftspeople in Japan, Sumiko's engineers have selected by ear, the finest materials that combine to deliver performance that has enlightened generations of listeners.
Each design is meticulously auditioned until perfected. Production is then executed by world-class cartridge makers with a collective eye for precision and quality. The result is a full horizon of cartridges of exceptional quality.
TECHNICAL SPECIFICATIONS
Mass & Dimension (WxHxD)
6.5g, 17.2 x 18.8 x 29 mm
Stylus
0.3 x 0.7mil Nude Elliptical
Cantilever
⌀0.5mm Aluminum Pipe
Coils
High-Purity Copper
Internal Impedance
1,130Ω
Load Impedance
47kΩ
Frequency Response
12Hz – 33kHz
Output
3.0mV
Channel Separation
30dB @ 1kHz
Channel Balance
<0.5dB @ 1kHz
Compliance
13 × 10-6cm/dyn @ 100Hz
Capacitance
100pF – 200pF
Vertical Tracking Angle
26°
Tracking Force Range
1.8g – 2.2g
Recommended Tracking Force
2.0g
Replacement Stylus Units
RS Rainier, Olympia, Moonstone, Wellfleet, Amethyst or RS 78
