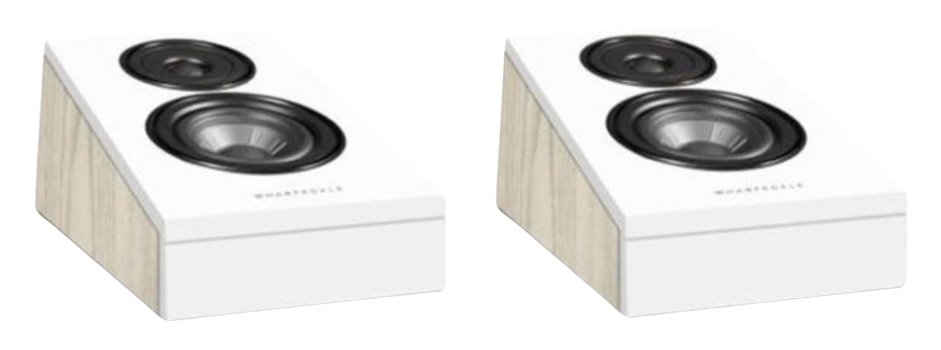

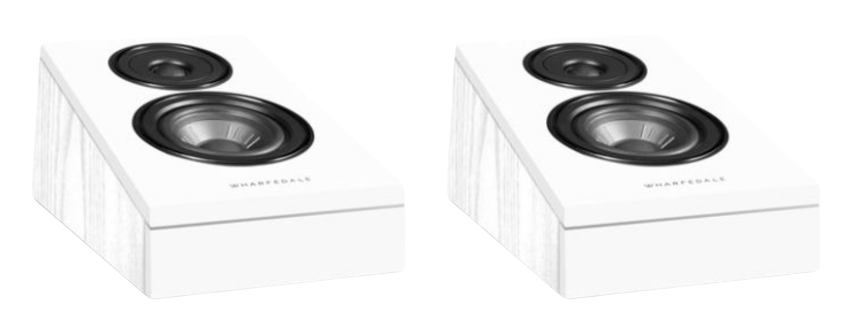

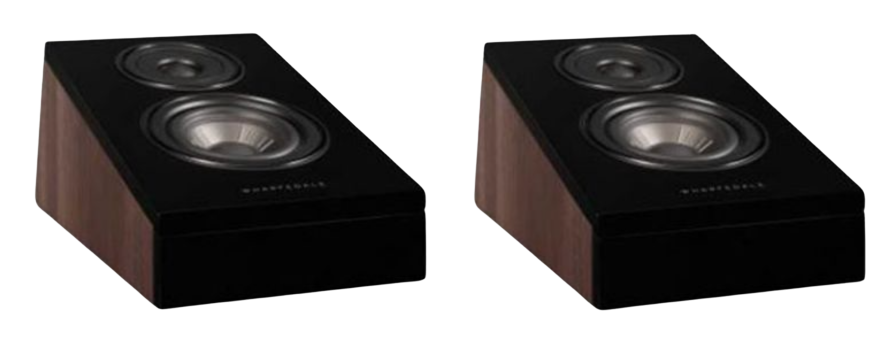

Introducing the Diamond 12.3D Surround Speaker pair
Bringing Cinema Quality Sound Home
Since 1982, Wharfedale’s famous DIAMOND speakers have served as the classic entry point to true high-fidelity sound, their exceptional sonic value for money earning numerous ‘product of the year’ accolades in the UK and around the world. This autumn, with the introduction of the all-new DIAMOND 12 Series, Wharfedale once again raises the bar for affordable, high-performance loudspeakers.
With this newest addition to the record-breaking, award-winning DIAMOND 12 series, Wharfedale takes surround sound to the next level with the DIAMOND 12 3D surround speaker.
Covering the audience in a dome of sound, following Wharfedale’s long history in cinematic and home theatre solutions, you can now have a 3D cinema-audio listening experience at home with your DIAMOND 12 series configuration.
Klarity affords focus
NEW Klarity™ cone material, formulated from a blend of Polypropylene and mica adds stffness to reduce flexing, enabling a lightweight cone with high rigidity, low colouration and lightning-fast response.
Low colour and expression
The Klarity™ cone isfitted with a low-damping surround, thereby achieving both low colouration and expressive dynamics. By simulating many dfferent cone shapes and adding ribs to provide further stffening, a flat response curve was achieved without resorting to a high-damping surround, thereby striking the ideal balance.
A magnet of forces
A precision-made magnet system with an aluminium compensation ring to minimise the effect of variations in inductance as the voice coil travels. This contributes to an absence of distortion and intermodulation generated by the ‘motor system’.
A voice coil beyond this class
The voice coil is wound on a high-power epoxy/glass fibre bobbin highly unusual in speakers at this price level. This has the advantage of not adding eddy currents and delivering greater power handling than an aluminium bobbin, whilst also being much stiffer than the Kapton type associated with this price-class.
DIAMOND highs
The 25mm dome is made from a woven polyester film with a high-loss coating to deliver open and smoothly extended high frequencies. The magnet system and the front plate have been optimised for wide dispersion and uncompressed behaviour. The front plate isflat and exposes the dome as much as possible; only a very short duct on the front plate balances the acoustic load and improves the SPL (sound pressure level) measurement.
A crossover of style
The crossover network uses an acoustic LKR 24dB topology. This includes air-core inductors of the type more commonly found in high-end speakers, selected because they produce the lowest distortion of all inductor types. As the resistance of the coil is higher than a standard laminated steel or ferrite core inductor, the magnetic structure of the mid/bass driver has been modified to compensate, resulting in fast, clean bass with no distortion from the inductor.
Firm and fair
The DIAMOND’s rear-ported enclosure is precisely sized so that the internal volume works in harmony with the drive unit system to deliver the desired sonic result. A multi-layered sandwich design subdues the identfiable characteristics of the cabinet’s ‘sound’. Even the resonant properties of the glue between the layers was measured to determine the optimum combination.
Brace yourself
Inside the cabinet, Intelligent Spot Bracing connects opposite walls with a specfic form of the wood brace to achieve an optimal reduction of cabinet resonance. These braces are precisely modelled by computer simulation to improve upon the commonplace figure of eight’ brace, which may simply transfer resonance from one wall to another.
Technical Specifications
Diamond 12.3D
2-way amos speaker
Closed-box system
2-way
4" (100 mm) advanced PP cone
1" (25 mm) textile dome
No
82 dB
20–100 W
95 dB
8Ω compatible
4.0Ω
110 Hz – 20 kHz
90 Hz
3 kHz
2.7 L
145 x 180 x 310 mm
3.2 kg per speaker
