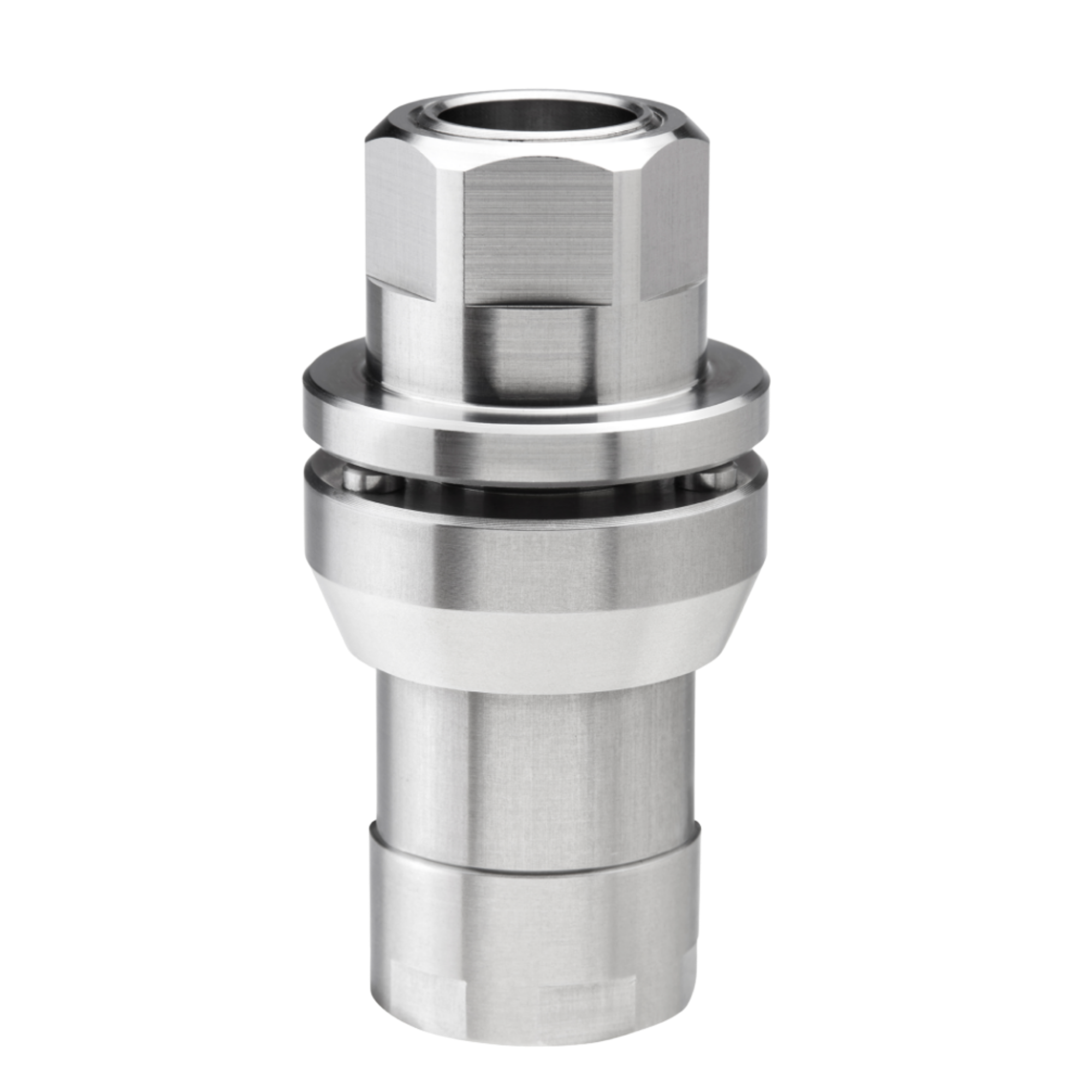

Meet the Karousel
Exceptional Entry-Level Performance for Vinyl Enthusiasts
Karousel, Linn’s new precision-engineered single-point bearing, offers smoother rotation and greater stability for even better sound from your Sondek LP12.
This innovative new take on our original bearing design has been made possible by technological developments in material science, machining capabilities and mechanical engineering expertise gained from almost half a century of designing and manufacturing the world’s best turntable.
That vital union between the platter, spindle, bearing and sub-chassis is now the strongest we’ve ever achieved. The substantial lock-nut fastening on the stainless steel housing increases rigidity at the critical point where bearing and sub-chassis come together.
Enhancements to the base of the bearing include a stronger housing for the thrust pad, and combined with a smaller, stiffer form improves the critical area that supports the platter rotation and mass, meaning your vinyl reproduction is more accurate and detailed than ever before.
Retro-fittable to any LP12*
*Please note that Karousel must not be used with Valhalla, Wakonda PSU or third party power supplies that are fitted within the deck. In addition, older outer platters may need to be replaced to fit with current specification inner platter supplied with Karousel bearing.
Key Features
- Smoother rotation
- Stainless Steel Bearing design improves rigidity and stability
- Stronger, stiffer thrust pad and housing reduces vibration effects on music reproduction
Technical Specifications
Product Type
Precision-engineered single-point main bearing for Linn Sondek LP12
Bearing Type
Single-point bearing
Bearing Housing
Stainless steel
Spindle
Precision-engineered platter spindle
Spindle Coating
Diamond-like carbon (DLC) coating at the spindle tip and bearing interface
Thrust Pad
Re-engineered, stronger and stiffer thrust pad and housing
Mounting System
Substantial lock-nut fastening with three-pin dowel location system
Mounting Method
Rigidly secured to the LP12 sub-chassis
Recommended Mounting Torque
3.5 Nm
Primary Function
Supports the LP12 platter and provides smooth, stable and accurate rotation
Key Performance Benefit
Reduced friction and improved mechanical rigidity
Compatibility
Linn Sondek LP12
Retrofit Compatibility
Can be retrofitted to LP12 turntables, subject to compatibility with the existing LP12 configuration.
Kit Contents
Bearing housing, sub-platter with spindle, suspension springs, rubber grommets, lock nuts, washers and earth lead.
Weight
Approx. 2 kg shipping weight for the complete upgrade kit.
Manufacturer
Linn Products Limited, Scotland, United Kingdom
Important Compatibility Note
Karousel should not be used with LP12 systems fitted with Valhalla, Wakonda or certain third-party internal power supplies. Older outer platters may also require replacement to accommodate the current inner platter supplied with the Karousel.
Why We Like to Recommend the Linn Karousel
The Karousel is one of the most worthwhile upgrades for an older Sondek LP12 because the main bearing sits at the heart of the turntable's mechanical system. Improving the rigidity and stability of this critical interface can benefit the performance of the entire LP12.
For LP12 owners upgrading their sub-chassis, tonearm or cartridge, the Karousel provides an excellent mechanical foundation. Its improved bearing design helps the platter rotate with greater stability, allowing the cartridge to track the record groove more accurately and contributing to improved clarity, timing and musical precision.
It is particularly well suited to an LP12 being progressively upgraded, where improvements to the bearing, sub-chassis, power supply and tonearm can work together to deliver a significantly higher level of analogue performance.
*This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change without notice.
E&OE
