ATC Speakers
ATC SCM50PSL Passive Speakers
- Availability:
- Usually Ships in 48 - 72 Hours
- Shipping:
- Free Shipping
Description
We'd like you to meet the SCM50PSL Passive Speakers
When perfornamce just can't be compromised
The SCM50 SL (passive) are designed to perform at their best in the recording studio or at home with the finest quality hi-fi equipment.
Product Features
- 75mm (3") SM75-150S soft dome midrange driver; new 25mm A TC SH25-76S tweeter
- 234mm (9′′) bass driver incorporating ATC’s unique Super Linear Magnet technology
- Tri-wire connectivity
- Supplied with stands and fabric wrapped grills; Hand-built in England
The monitors’ ability to reproduce music and speech with phenomenal accuracy, transparency and dynamics lies mainly in the SM75-150S soft dome midrange driver. However, recent modifications that include the new ATC SH25-76S tweeter and enhanced port profile have brought about further improvements to all performance parameters.
Each drive unit in the active model has its own dedicated and individually matched MOS-FET amplifier, while the 234mm/9″ bass driver incorporates ATC’s unique Super Linear Magnet technology. ATC's active crossover network consists of a wide band-width, electronically balanced input stage with high common mode rejection and very low distortion.
Like the HF, mid and bass drivers, all electronics are designed and manufactured in-house to create a no-compromise active system. In passive form, the SCM50 SL provides broad and symmetrical dispersion, excellent amplitude and phase characteristics throughout the frequency range.
Speakers are supplied with stands and fabric wrapped grills.
These loudspeakers are also available in Active versions. Please see this link to the SCM50ASL.
Both versions employ ATC’s renowned drive units which are painstakingly designed and manufactured by ATC in the UK.
Special Order Finishes
ATC is committed to not only ensuring that there product range offer nothing less than the best sound reproduction money can buy they're also committed to housing their stunning engineering is as bespoke a manner as possible. That's why they offer a range of finishes to suit your personal space and style.
Being special orders, these finishes do take a little longer to arrive, but once you set eyes on them, you'll be glad for the wait! Please call us if you have any queries.
The full list of finishes is shown below and note that some finishes have different pricepoints.
Technical Specifications
Mid/Bass driver
75 mm
High Frequency Driver
25mm
Low Frequency
234mm Super Linear
Amplitude Linearity ±2dB
70Hz – 20kHz
Frequency Response -6dB
38Hz & 25kHz
Matched Response
±0.5dB
Dispersion
±80° Coherent Horizontal
±10° Coherent Vertical
Max continuous SPL @1m
112dB SPL
Crossover Frequency
380Hz & 3.5kHz
Input Connector
XLR
Input Sensitivity
1V
Input Impedance
>10k ohms balanced XLR
Amplifier Output
HF 50 Watts RMS
MF 100 Watts RMS
LF 200 Watts RMS
Overload Protection
Active FET momentary gain reduction (amplifiers)
Power Requirements
Voltage: 100, 115, 230 (factory set)
Frequency
50/60Hz
Power
Nominal 90 Watts, Driven 350 Watts
Colour Options - $27,995.00
Walnut
Oak
Special Order Finishes - $27,995.00
Cherry

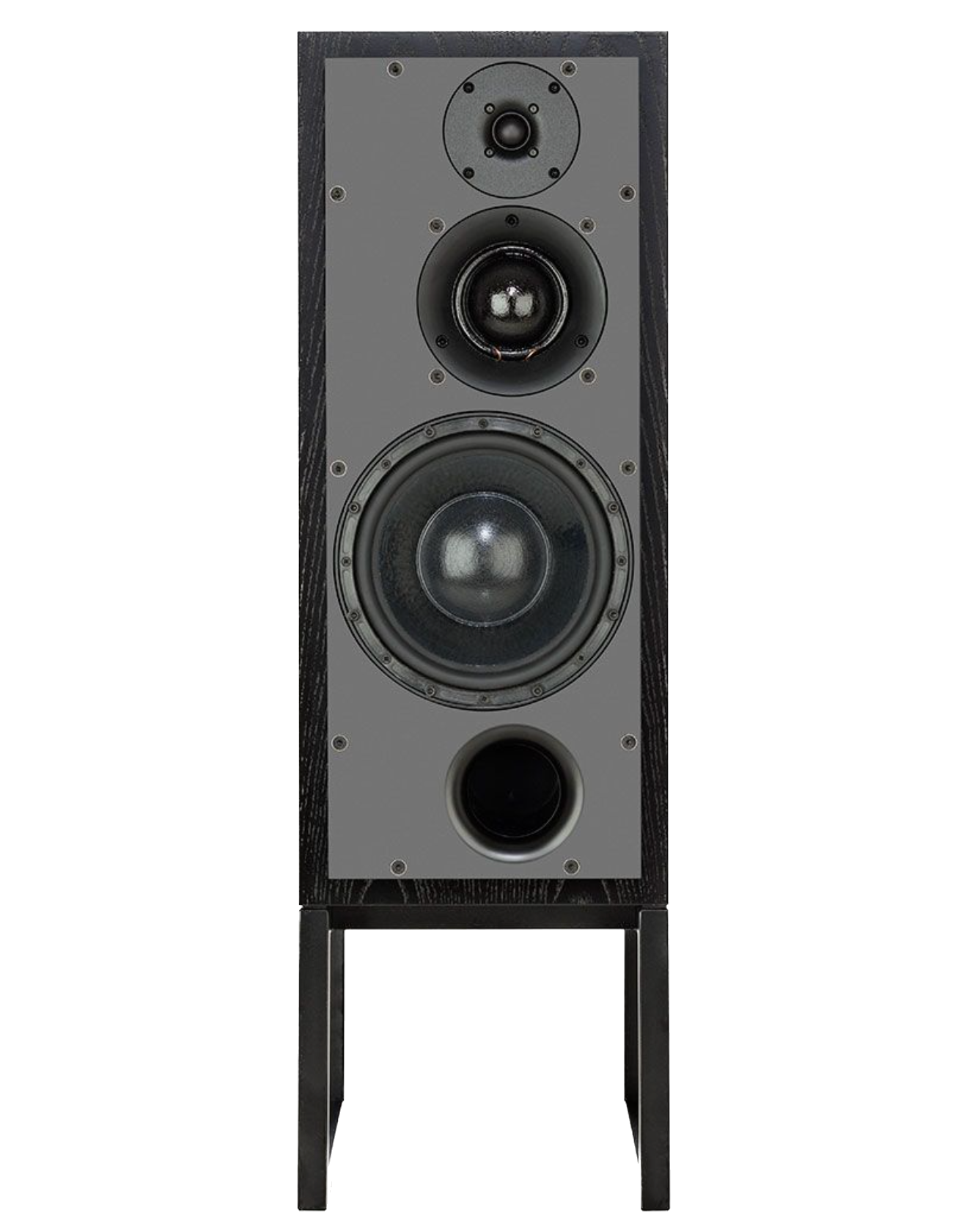

Black Ash
Satin White
Satin Black
Premium Special Order Finishes - $29,995.00

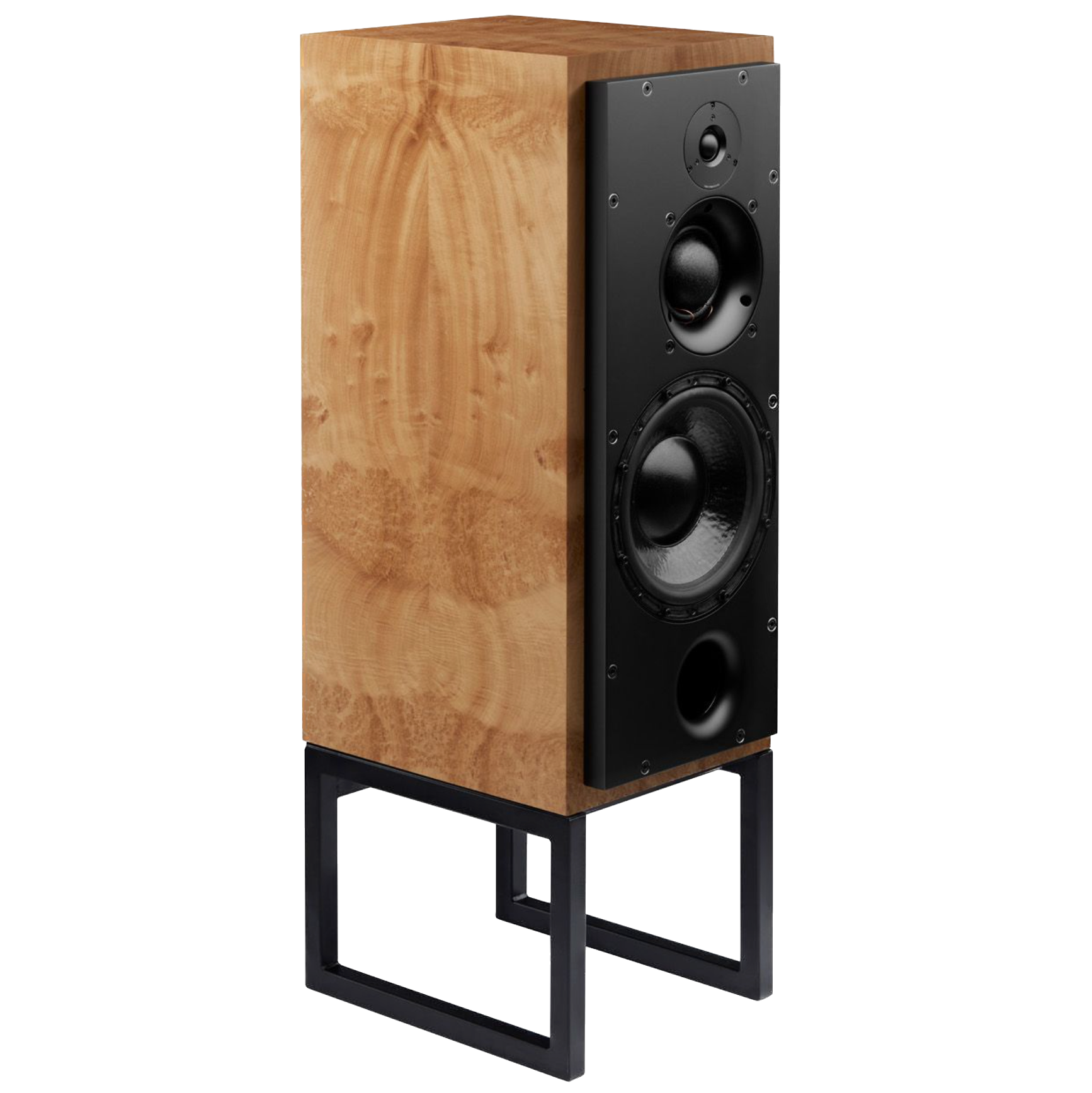

Burr Magnolia
Burr Poplar
European Walnut
Pippy Oak

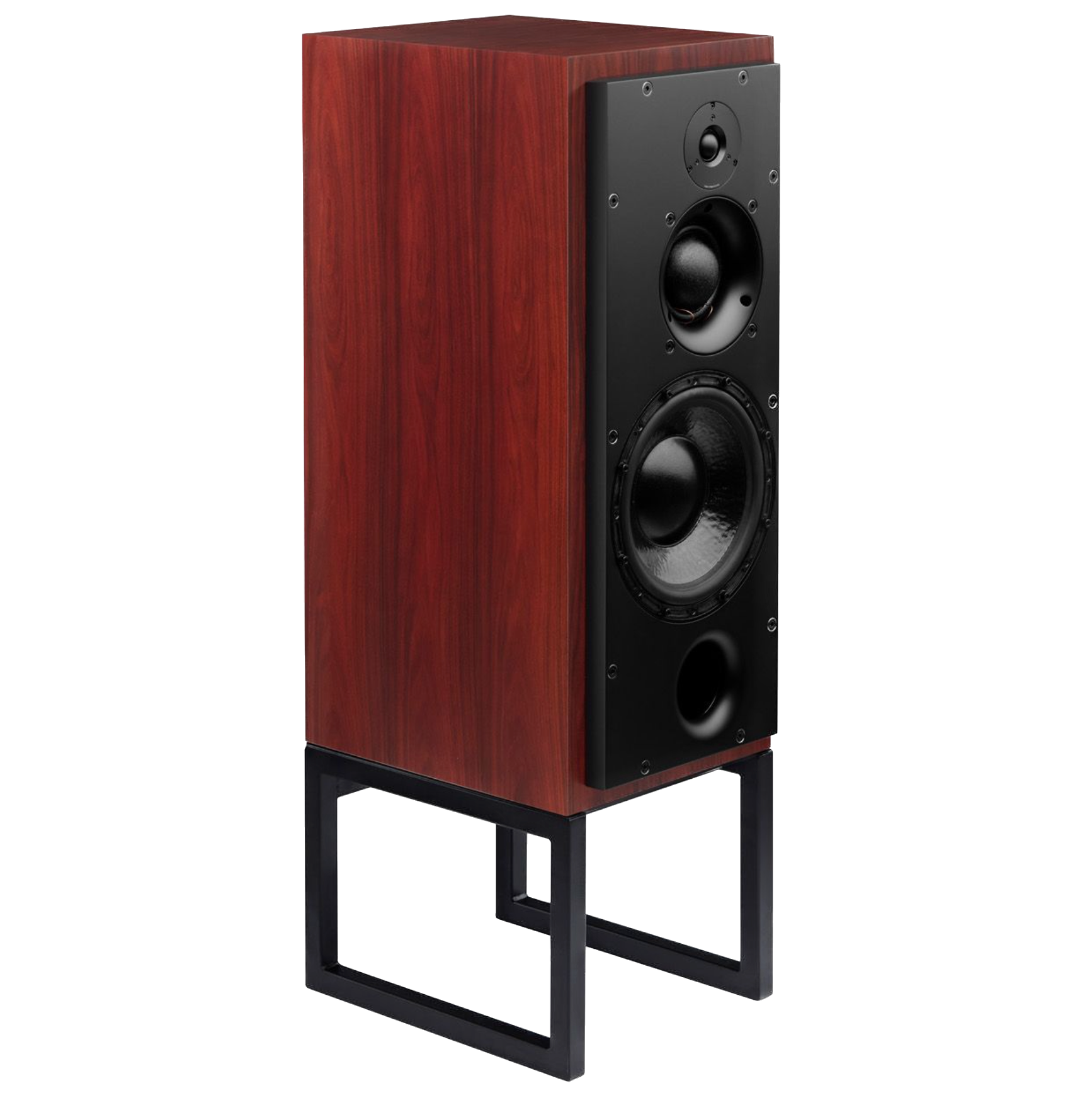

Rosewood
Gloss Special Order Finishes - $32,495.00

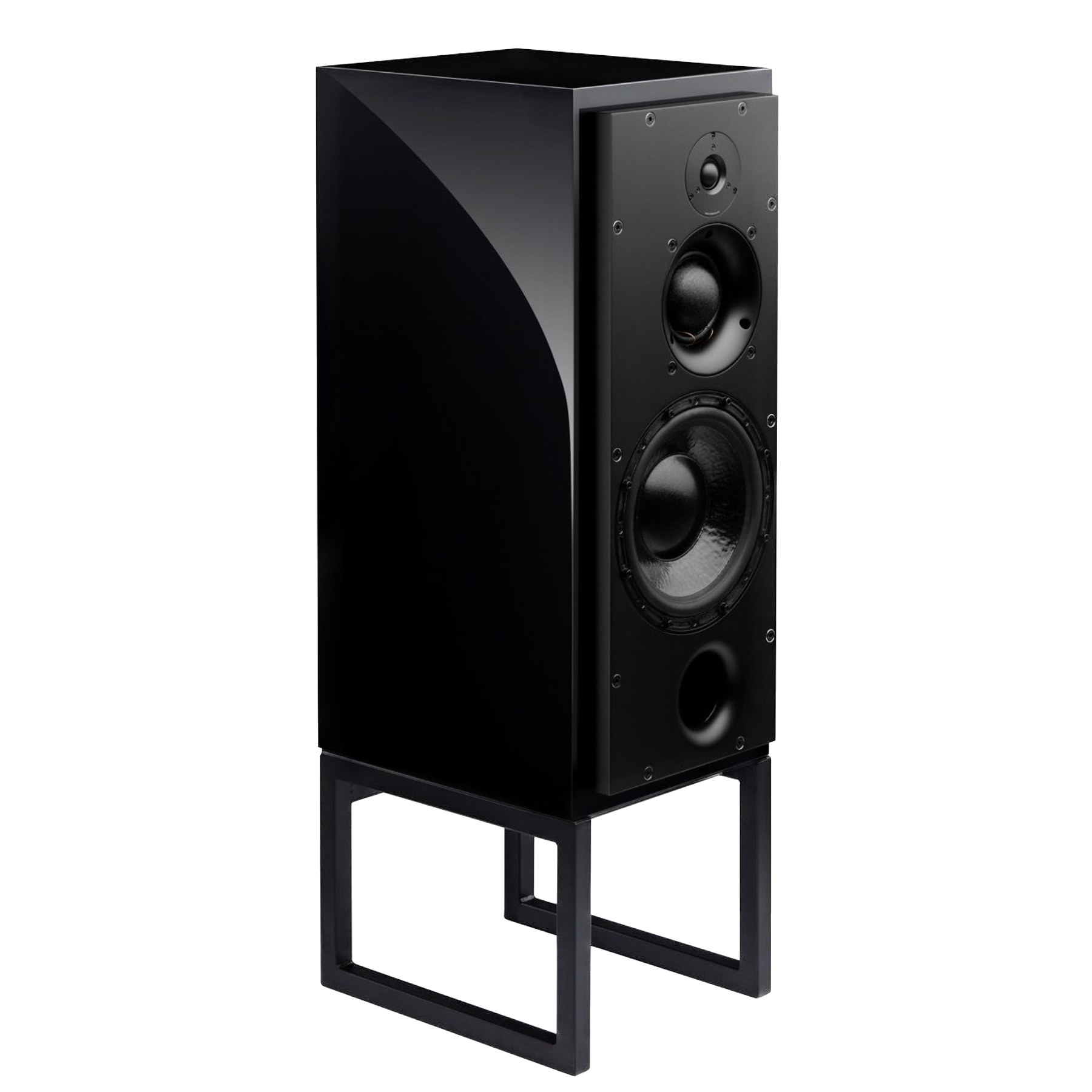

Piano Black
Gloss White
Dimensions (H x W x D)
450 x 250 x 411 mm
*This information has been obtained from Manufacturers website. We advise that Price, Features & Specifications are subject change without notice.
E&OE
