Introducing the BHA-1
Headphone sound like its meant to be heard - perfectly
Advancing Bryston Audio's tradition of unmatched audio performance and functionality, the Bryston BHA-1 balanced headphone amplifier delivers the finest listening experience from a vast array of headphone types.
Functionally a miniature power amplifier, engineers applied the same robust design elements to the BHA-1 that have made their full-sized amps legendary worldwide. Unique to the BHA-1, six class A, fully discrete operational amplifiers generate up to 2 watts of power for exceptional dynamic range.

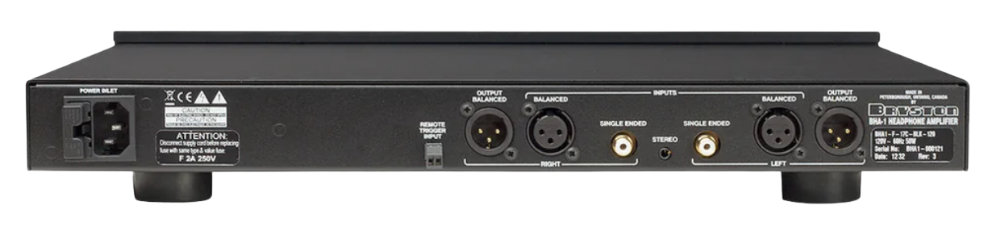

The BHA-1 offers both balanced outputs and single-ended outputs for traditional headphones, as well as a pair of rear-mounted XLR outputs that enable users to operate the BHA-1 as a high-quality analog preamplifier.
Hear the best your headphones have to offer by powering them with a Bryston BHA-1.
Product Features
- 3 stereo inputs: RCA, XLR, and 3.5mm TRS
- Fully Class A discrete operational amplifiers.
- Low distortion, high power output
- Balanced output
- Switchable gain
- Fully convection cooled means no noisy fans
- Machined and anodized aluminum enclosure and dress panel
- Legendary Bryston 10 Year Warranty
Product Options
- Silver or black faceplate
- 17” or 19” faceplate (non-rack mountable)
- 17" compatible with rack mount ears
- Locking mechanisms on Balanced XLR connectors
Accolades
Technical Specifications
Frequency Response
20Hz - 20kHz
THD+N (20Hz-20kHz @ Rated Power)
<0.005%
Power Output (per channel)
2W @ 32Ω
Input Impedance
Unbalanced 10kΩ
Balanced +15kΩ/-5kΩ
Sensitivity
HI (approx 20 dB) setting: 70mV in = 100 mW out into 50 Ω (500mV in = 5V out)
LO (approx 14 dB) setting: 140mV in = 100 mW out into 50 Ω (500mV in = 2.5V out)
Faceplate Finishes
Black
Silver
Faceplate Sizes (non rack mountable)
17" (43.18 cm)
19" (48.26 cm), with front mounted handles
Dimensions (W x H x D)
17" (43.18 cm) or 19" (48.26 cm) x 6.88 cm x 28.2 cm
*This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change without notice.
E&OE
