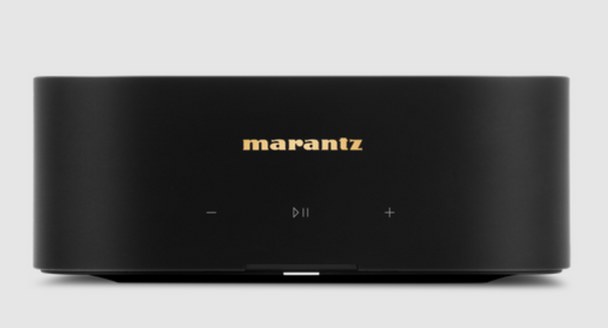

Meet the Model M1

Wireless Streaming Amplifier from Marantz

The MODEL M1 is a wireless streaming amplifier engineered with performance and versatility in mind. Enjoy your favourite music or TV shows with seamless connectivity from one elegant, compact device.

True Marantz Power

MODEL M1’s 100W per channel of high-quality, low-distortion amplification delivers pristine sound anywhere, while a subwoofer output delivers room-filling scale in larger spaces.

High Resolution Digital Direct

However you choose to stream your high-resolution music, MODEL M1 has you covered, with support for HEOS, AirPlay2, Bluetooth, Spotify Connect, and more.

Marantz Multi Room

The expansive feature set yet diminutive size of M1 makes it the ideal partner for multi-room listening.

Marantz Musical Digital Filtering

MMDF is a unique and sophisticated digital filtering technology that reveals the natural detail and tonality in sound

TV Sound - Marantz Quality, Soundbar Simplicity

Unveil superb sound from movies and TV programs with MODEL M1 using HDMI eARC and onboard Dolby Digital+ processing

Product Features

Crafted in Shirakawa, Japan
2.1 Channels
100 Watts per Channel
HDMI eARC
Dolby Digital+
HEOS Built-in

Technical Specifications

Amplifier

Power Amplifier Rated output & THD (8 ohm) 100 W+100 W (8 Ω, THD 0.05%)
Power Amplifier Rated output & THD (4ohm) 125 W + 125 W (4Ω/ohms, 1 kHz, T.H.D. 0.05%)
Frequency Response 20 Hz to 20 kHz : ±1 dB
Connected loudspeaker Impedance 4 – 16 Ω/ohms

Audio Inputs / Outputs

Loudspeaker Binding Posts 4-way binding posts
Digital Inputs HDMI (eARC), TOSLINK
Analog Inputs RCA L/R
Subwoofer Out RCA Mono

Inputs Audio Options

Channel Assignments Stereo (Default), Dual Mono
Volume Limit 80-100%
Balance -15dB to +15dB
Adjustable High Pass / Low Pass Filters 40-250 Hz / 40-120 Hz
EQ Bass, Treble -5dB to +5dB
Sound Modes Stereo, Direct, Virtual, Dialog Enhancer, Night Mode
TV Sound Grouping Yes

Audio Format Support

Decoding Dolby Digital +, Dolby Digital, LPCM, DSD
Stereo PCM / Multi-channel PCM Yes / Yes
Stereo File Formats (HEOS network share or USB) WMA: up to and including 192 kbps, AAC & MP3: up to and including 320 kbps, WAV, ALAC, FLAC: up to and including 24-bit/192kHz, DSD: 2.8 MHz, 5.6MHz

Streaming Technologies

Bluetooth BT 4.2.X
AirPlay 2
Spotify Connect

Music Services and Sources

Music Services Supported (HEOS®, subject to change and local availability) Pandora, Spotify, TuneIn, SiriusXM, Amazon Music, Tidal, Tidal HiRes, iHeartRadio, Deezer, Deezer HiFi, Mood:Mix, Sony Hi-Res, AWA, QPlay, SoundCloud.
Music stored on mobile deviceY es (iOS, Android or Kindle Fire)
NAS (Network Attached Storage) Network share
USB Storage Device Playback Yes (FAT32, NTFS formatted drives)

Networking & Control

Wired Connectivity Ethernet
Wireless Connectivity Dual band, 802.11 a/b/g/n/ac
IR Input 3.5mm
IR Learning Yes
Control System Compatibility via TCP/IP Creston, Control4, AMX
HEOS® AppiOS, Android, Kindle Fire

General

User Interface Volume up/down, Play / Pause, Multi coloured LED status indicator, Connect button (rear), Bluetooth button (rear)
Dimensions (W x D x H) mm 239 x 84 x 217
Weight (kg) 2.2
