Mission
Mission 778X Integrated Amplifier in Silver
- Availability:
- Usually Ships in 48 - 72 Hours
- Shipping:
- Free Shipping
Description
Introducing the Mission 778X Integrated Amplifer in Silver
A True Labour of Love, you can Hear it!
The Mission 778X ’s all round performance is engaging, detailed and refined.
Detail, timing and dynamics excel, regardless of source or medium. Designed for the modern-day music enthusiast with a nod to Missions heritage, the Mission 778X does not discriminate when it comes to expression and enjoyment of your music reproduction.
Today’s Mission 778X maintains the influence of simplistic operation, large tractile controls, and a multitude of inputs. It’s a compact, ’80s inspired integrated amplifier that is fully equipped to meet the demands of modern music lovers, from vinyl fans to digital streamers. Modern twists, such as LED level indicators and all-encompassing connectivity options, make the 778X a truly contemporary integrated amplifier. Boasting a genuine 65 watts (@4 ohms) of power via an utterly modern and refined signal path, to standards akin to the exemplary standards to which Mission loudspeakers are developed.
Phono Ready
The phono stage is based around a JFET-based circuit with precise RIAA equalisation. It’s optimised for MM cartridges and as such, it’s a high-quality, low-noise input that eliminates any need for an additional phono pre-amp.
Complementing the typical RCA line inputs are digital and coax connection options and a built-in Bluetooth receiver with an aptX and AAC codec, meaning the 778X offers CD performance via Bluetooth wireless connection. The convenience of streaming music from smart devices, such as phones, tablets or PCs have never sounded so good!
DAC's the Way!
Utilising the acclaimed ES9018K2M Sabre32 Reference chip with ESS Technology’s 32-bit HyperStream architecture and Time Domain Jitter Eliminator, the Mission 778X offers ultra-low noise, a high dynamic range of digital audio files with a sampling rate of up to 384kHz (PCM) and DSD256.
Headphone Stage
Design Philosophy and Core Technology
- Integrated Amplifier (45 watts @8 ohms, 65 watts @4 ohms)
- ESS Sabre32 ES9018K2M Reference Chip
- Ultra-low Noise Digital Audio File Compability (384kHz PCM, DSD256) • Bluetooth 5.0 (aptX / AAC) Support
- Dedicated High-performance, Low-noise MM Phono Stage
- Headphone AMP With High-speed Output Signal Transition
- USB Upgrade Support

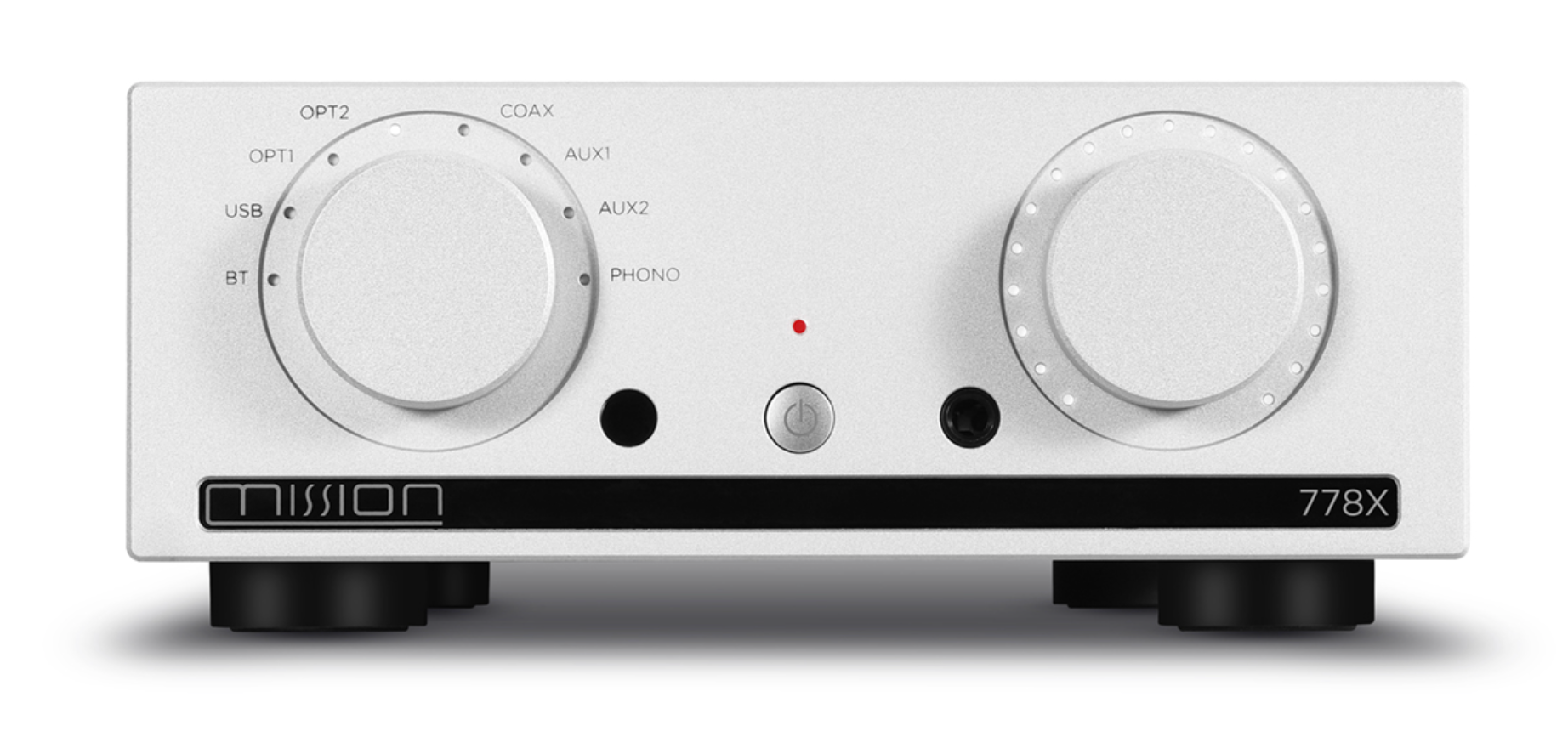

- Large Tractile Controls With LED Level Indicators
Technical Specifications
General Description
Digital-to-Analogue Converter, Stereo Amplifier

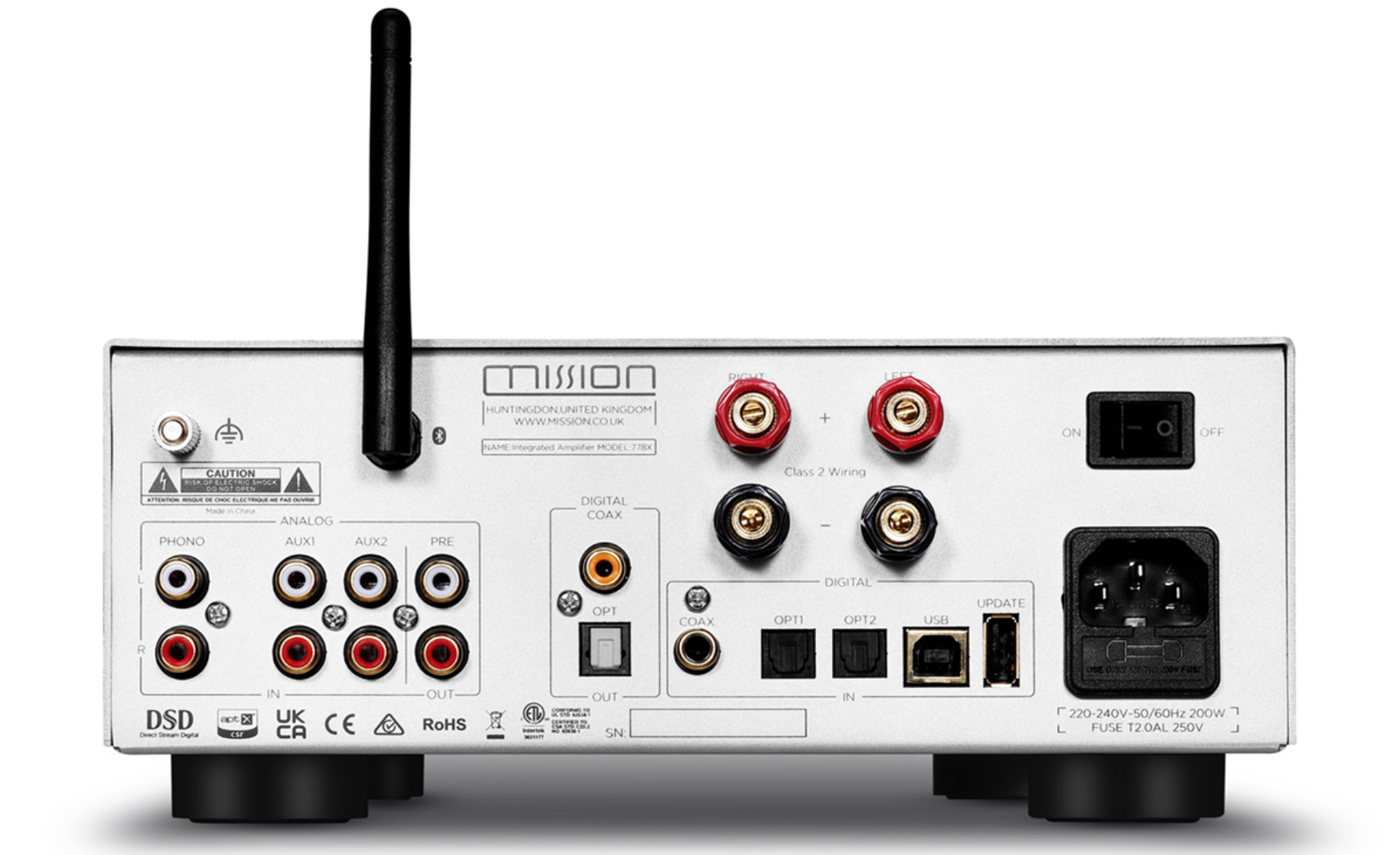

Inputs
1 x Coaxial, 2 x Toslink Optical, 1 x PC USB, 1 x Bluetooth (aptX/AAC),
2 x AUX,1 x RCA (Phono MM)
Outputs
1 x Coaxial, 1 x Toslink Optical, 1 x RCA (PRE Out)
Sampling Frequency
Optical / Coaxial: 44.1kHz-192kHz;
PC USB:44.1kHz-384kHz(PCM) / DSD64, DSD128, DSD25
Preamplifier Section
Gain (max.)
+0dB (Line), +47dB (Phono MM)
Input Sensitivity
540mV (Line, Volume = 0dB); 2.5mV (Phono MM, Volume = 0dB)
Input Impedance
10K (AUX); 47K//100pF (Phono MM)
Total Harmonic Distortion (THD)
<0.003%
Frequency Response (ref. 1kHz)
20Hz–20kHz (±0.1dB)
PRE Output Level
2.1Vrms (max.)
PRE Output SNR
110dB (A-weighted)
DAC
D to A Converter
ESS Sabre32 ES9018K2M
Resolution
32-bit
Max. Sampling Frequency
Optical/Coaxial: 192kHz
USB: PCM 384kHz / 11.2896MHz (DSD256)
Total Harmonic Distortion (THD)
<0.001% (1kHz @ 0dBFS)
Output Level (0dBFS, 1kHz)
2.1Vrms
Power Amplifier Section
Gain
+31dB
Rated Power Output
2 x 45W (8 ohms); 2 x 65W (4 ohms)
Frequency Response (ref. 1kHz)
20Hz–20kHz (±0.5dB)
Total Harmonic Distortion (THD)
<0.005% (30W / 8 ohms)
Input Sensitivity
540mV (RCA AUX In); 2.5mV (Phono MM)
Signal-to-Noise Ratio (SNR)
108dB (ref. 45W, A-weighted)
Crosstalk @1kHz
80dB (ref. 1W)
Standby Power Consumption
<0.5W
Headphone Amplifier
Total Harmonic Distortion (THD)
<0.01% (1kHz, 50mW)
Output Impedance
4.7 ohms
Load Impedance
20–600 ohms
General
Dimensions (mm) (W x H x D)
236 x 98 x 380.6
Carton Size (mm) (W x H x D)
450 x 392 x 175
Net Weight
6.3kg
Finishes
Black or Silver
Power Requirements (depending on region)
220–240V ~ 50/60Hz; 100–120V ~ 50/60Hz
Included Accessories
- Power cord
- remote control
- user manual
- antenna
*This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change without notice.
E&OE
