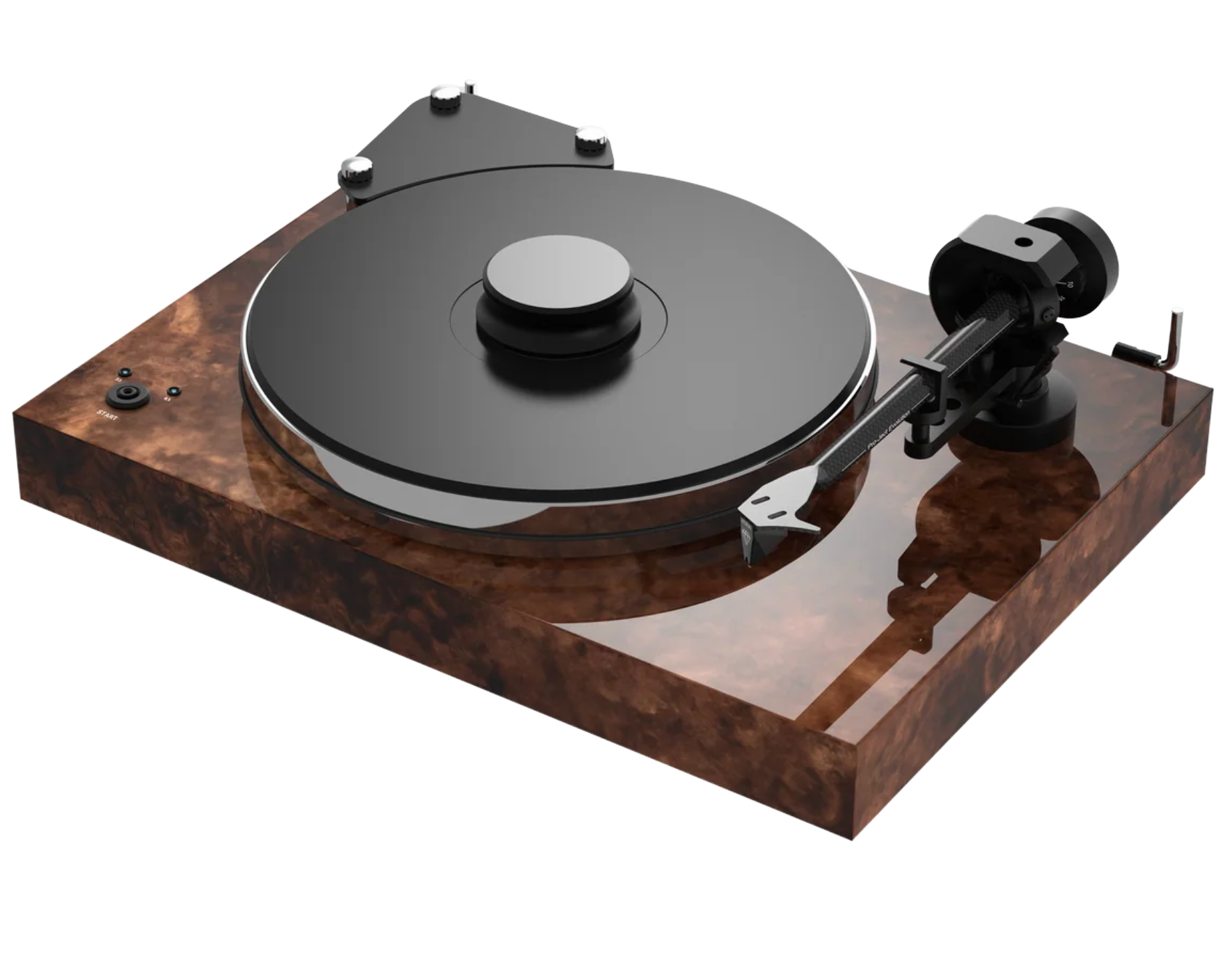

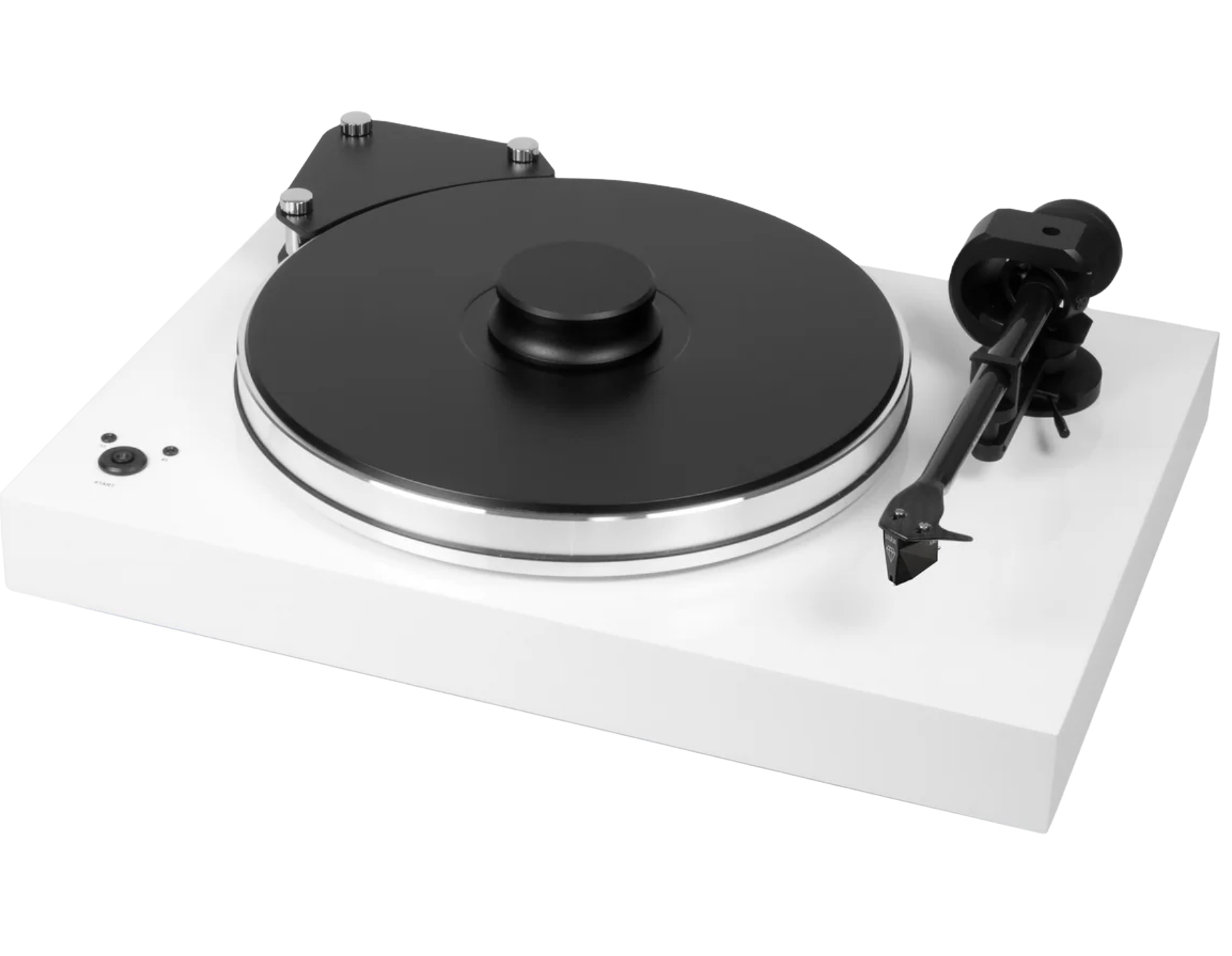

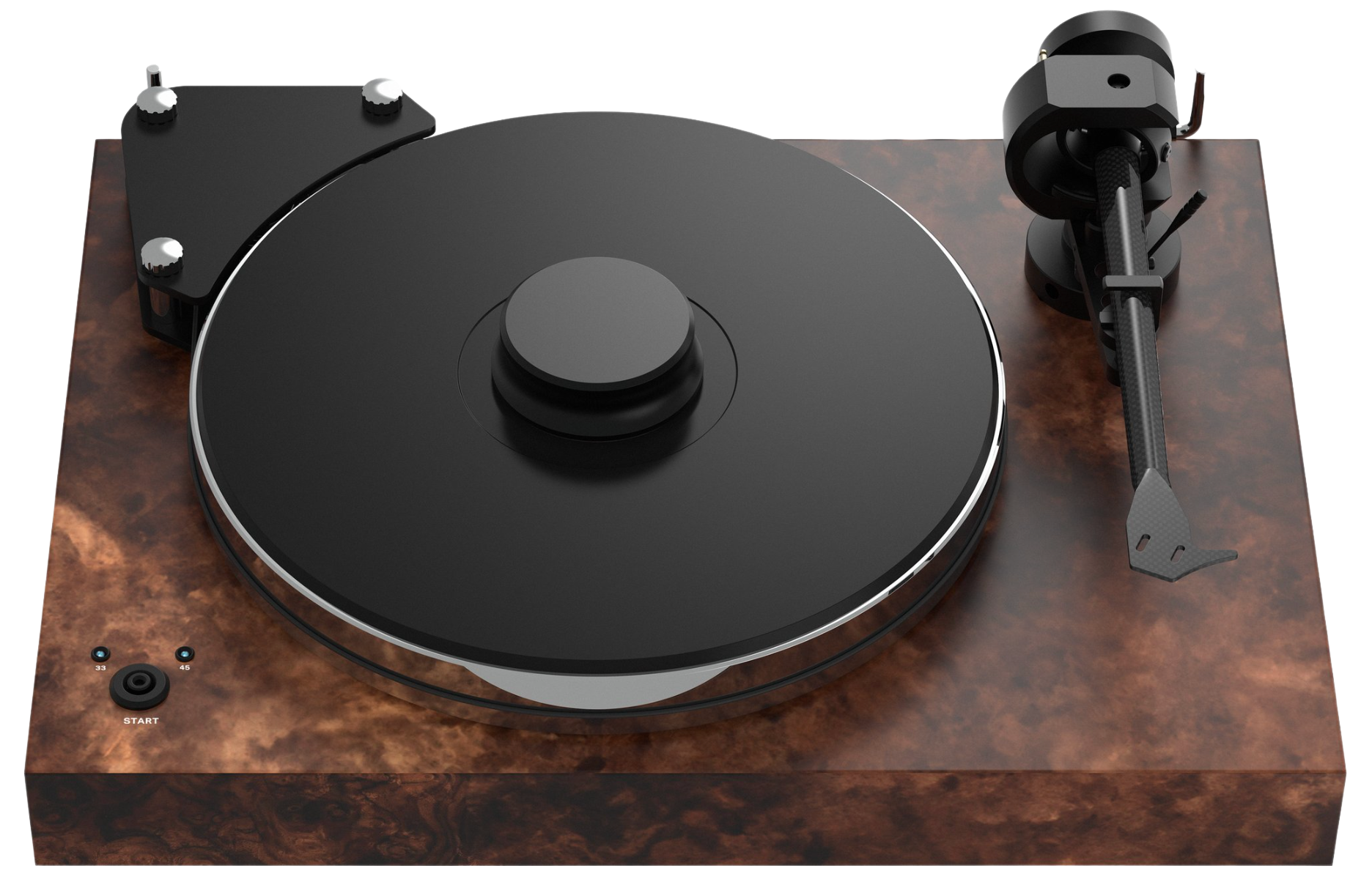

Introducing the Xtension 9 Evolution Turntable
Prefitted with your choice of Cartridge and Hand made in Europe for Stunning vinyl performance from a compact, luxurious turntable
ProJect considers the Xtension 9 Evolution quite an achievement. They’ve managed to incorporate all of their turntable design experience from more than 20 years in to a high end, slim-line size to fit standard audio racks.
The Xtension 9 chassis is made from MDF filled with metal granulate for high mass that virtually nulls resonance. Magnetic feet, which decouple the main plinth from its base, are combined with a weighty 16kg total turntable mass. The result is a unique combination of ‘mass loaded’ and ‘floating turntable’ design principles.
Instead of pure metal for the main platter, they’ve found a perfect alloy which has been damped with thermo plastic elastomers (TPE). Additionally it's glued recycled Vinyl records to the top (which act as a perfect mat) and baked this ‘sandwich’ before precision balancing it.
The final product subsequently benefits from a wonderfully resonance-free, heavy platter, that runs ultra-silently on an inverted ceramic ball bearing with magnetic suspension. The Xtension 9 Evolution includes a top-class 9cc Evolution tonearm and comes complete with a dust cover.
Additionally
- Heavy 16 kg belt drive turntable
- Mass loaded magnetic floating sub-chassis
- Precision balanced sandwich platter
- Inverted ceramic ball bearing with magnetic support
- Heavy weight record clamp
- MDF chassis filled with metal granulate with low levels of resonance and high mass
- Electronic speed control between 33 and 45 RPM
- 9cc Evolution tonearm made from carbon fibre
- Inverted tonearm bearings (ABEC 7 quality)
Product Features
- Moving Coil principle
- Simple and fast mounting
- High fidelity
- Exceptionally lively
- Very detailed with low distortion
- Needs MC-compatible phono input
- Robust polyamid-body
- Resonance free thanks to laser-sintering-process
- Rigid mounting plate out of metal
- Threaded holes for simple mounting without nuts
- Optimum contact to headshell thanks to three-point pad
Technical Specifications
Speed
33-1/3 RPM
45 RPM
Electronic Speed Change
Drive principle
Belt drive
300 mm
±0.09%
Wow and flutter±0.1%
73 Db
9" one-piece carbon fibre tonearm
230 mm
Cartridge weight range
4.14 g
Power supply
220-240V 50Hz
15V 1600mA DC
Overhang
18 mm
Power consumption
<1W Standby
4W Max
Cartridge Options (prices vary)
No Cartridge
ProJect Pick It DS2 MC
Ortofon 2M Black LVB
Ortofon MC X40
Ortofon Cadenza Red
Ortofon Cadenza Blue
Ortofon Cadenza Bronze
Available Finishes
High Gloss Black
High Gloss White
Walnut
Mahogany
Olive
Eucalyptus
Palisander
Piano Black
White
Dimensions (WxHxD), with closed lid
465 x 185 x 350 mm
Weight
16 kg net
In the Box
ProJect Xtension 9 Evolution Turntable
Record Puck
Connect It E 5P to RCA phono cable
Dust Cover
Power Supply
*This information has been obtained from Manufacturers website. We advise that Features & Specifications are subject change from Manufacturer without notice.
E&OE
