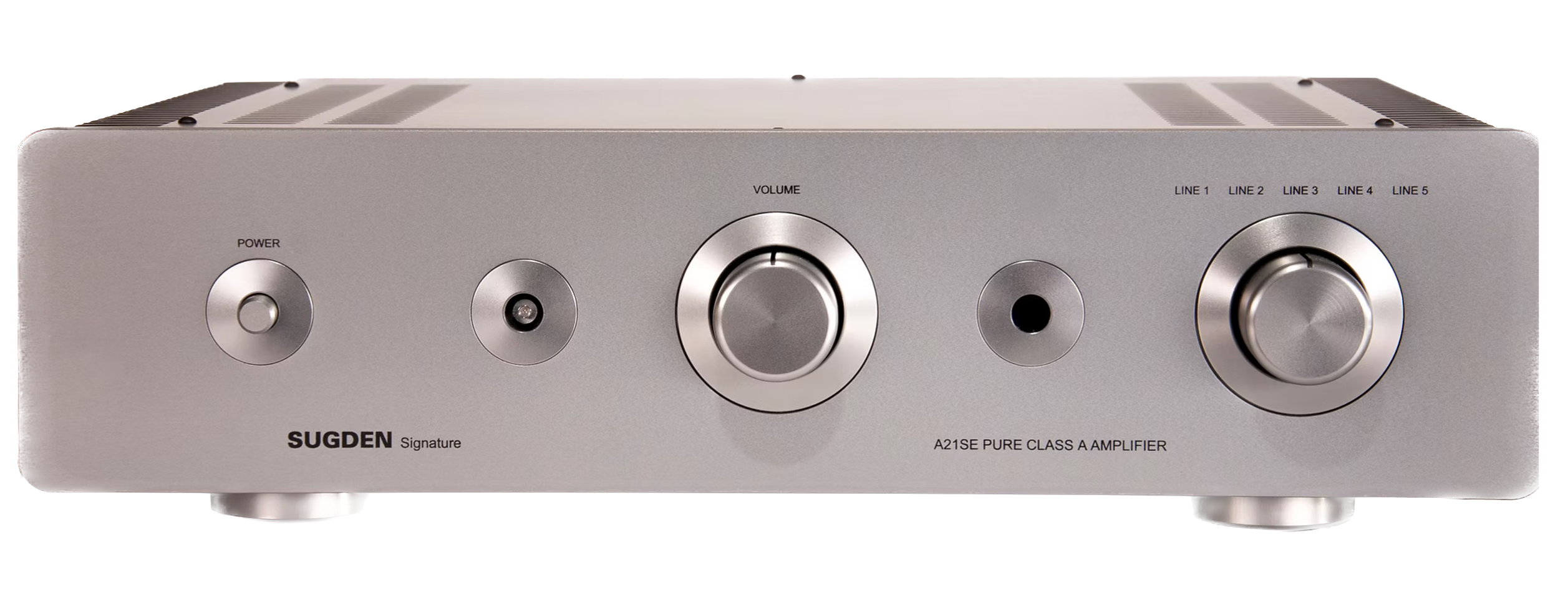

Sugden A21 Signature Integrated Amplifier
Affordable high-end Performance, with Optional MM/MC Phono
The Sugden pure class A design provides affordable high-end performance from a beautifully engineered single box integrated amplifier. Compact in size with a simple but stylish design, the A21 is possibly the only amplifier you will ever need. With many of the original A21’s still in daily use after fifty years, it could also last a life time.
Providing a large soundstage and depth to all types of music, the A21 is an amplifier you can listen to for hours without fatigue. The single ended circuit provides impressive dynamics and incredible bass.
Product Features and Specifications
Inputs
Five line level or four line level with optional MM/MC phono board

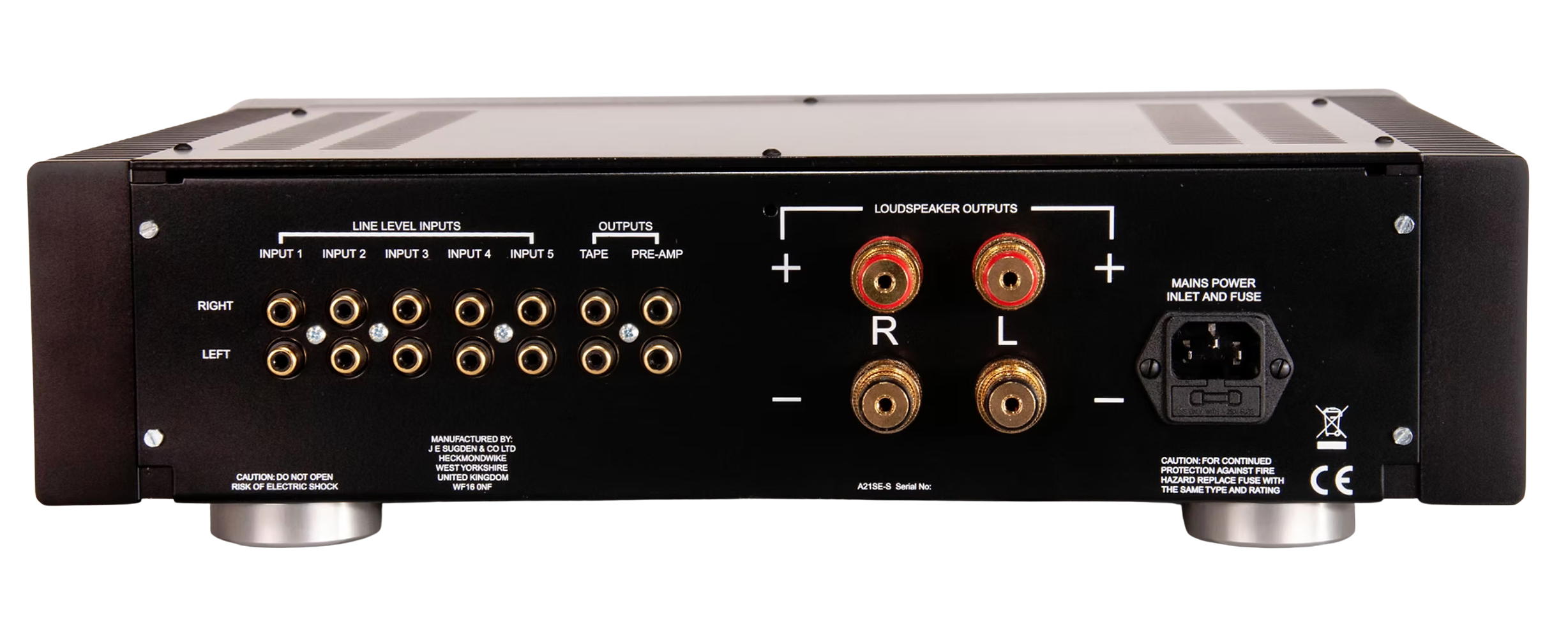

Outputs
Pre-Amplifier Out (Variable)
Tape out (fixed)
One pair stereo multi-way binding posts
Remote Control
Volume up/down
Earth terminal
Line Level Sensitivity
170mV for maximum output
Phono Input Sensitivity
3mV/Moving Magnet
0.2V/Moving Coil for maximum output
Phono Loading
Moving Magnet 47K
Moving Coil 100 ohm
Power Output
23 watts per channel into 8 ohms both channels working
Frequency Response
10Hz to 20kHz +/- 0.5dB
Bandwidth
6Hz to 200kHz +/- 3db
Signal to Noise
– >83db
Nett Weight
11kg
Dimensions (H x W x D)
92 x 430 x 350 mm
