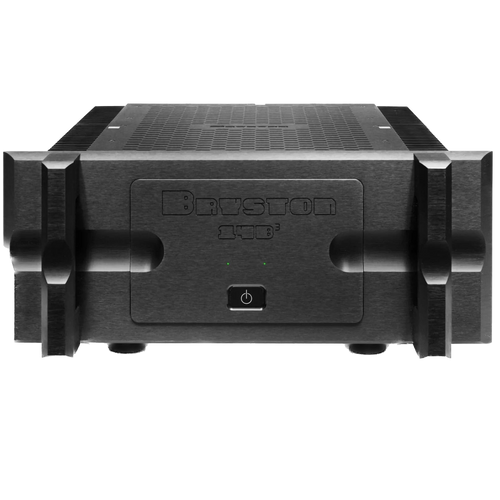

Bryston 14B Cubed Dual-Mono Amplifier

Bryston Audio

A $18,499.00
Availability:
Usually Ships in 48 - 72 Hours
Shipping:
Free Shipping

Presenting the 14B Cubed Dual-Mono Amplifier

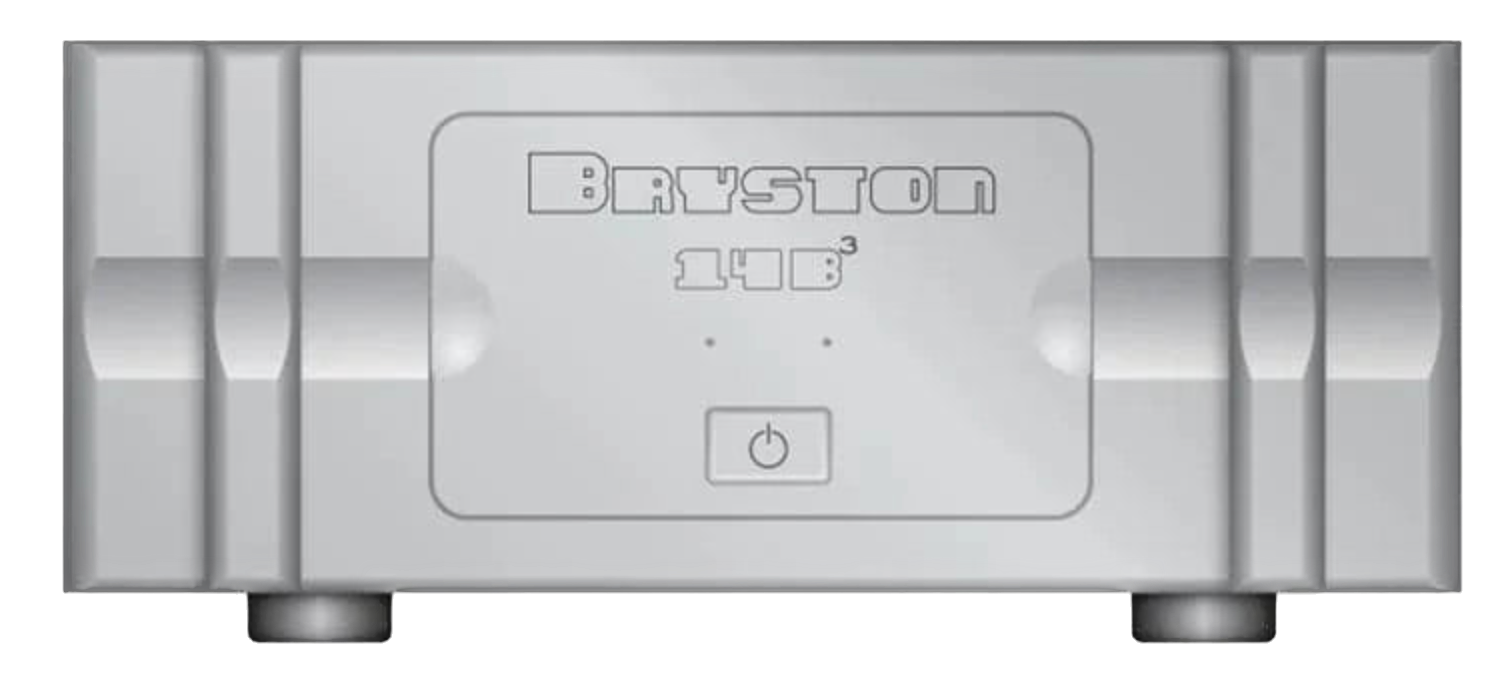

bryston-14b-cubed-dual-mono-amplifier-with-17inch-faceplate-silver-cropped-stereophonic.png

Built for Extrene Power and Unparallelled Detail

The Bryston 14B3 is a powerful two-channel amplifier for use in home sound systems requiring musically accurate, extremely reliable, no-compromise amplification.

It features huge power, utterly silent noise floor and grace wrapped in an iron fist.

The Bryston 14B³ has the kind of power usually only found in monoblocks, yet this model is a dual channel. That's not to say it is compact, however. This amplifier is big and it's heavy. Yet it drives any loudspeaker with agility and speed rendering your favourite music with exquisite detail.

Brystons Cube Series

At Bryston, finding ways to eliminate distortion from of their designs is a way of life. All Cubed Series electronics feature a new patented input circuit precisely optimised and linear beyond any they’ve used before. Featuring twelve active devices in a groundbreaking array, this new circuit both matches the amplifier to virtually any preamplifier and provides the first 6dB of gain.

The new input stage is so transparent, its measurable distortion is less than 1/1000th of 1 percent! Newly designed circuitry in the Cubed Series amplifiers is virtually impervious to noise such as RFI and others induced by external and environmental causes. Bryston's patented Salomie Circuit feature a unique method of trapping distortion components in the main signal path that pass through other amplifiers only to be amplified and played by your loudspeakers. This innovative distortion reduction method results in a much more natural and nuanced rendition of your recordings—playback more true to the original recordings and more enjoyable to your ears.

Quad-Complementary topology improves linearity to a new standard of accuracy while virtually eliminating aggressive higher harmonic distortion byproducts. Quad Complementary eliminates crossover distortion by improving transistor matching and reduces capacitance in the output stage by a factor of four which improves transient response and bandwidth. The overall harmonic distribution of Bryston’s Quad-Complementary output mimics the characteristics of a class-A design but with dramatically lower distortion. Each amplifier channel includes its own fully independent power supply with separate transformer; a feature uncommon even in amplifiers far more expensive.

Bryston engineers strive for accuracy and transparency because that is what sounds best. When a playback system is faithful to the recording, the listener can enjoy the most subtle details, capturing the depth and soul of the performance as the artist intended.

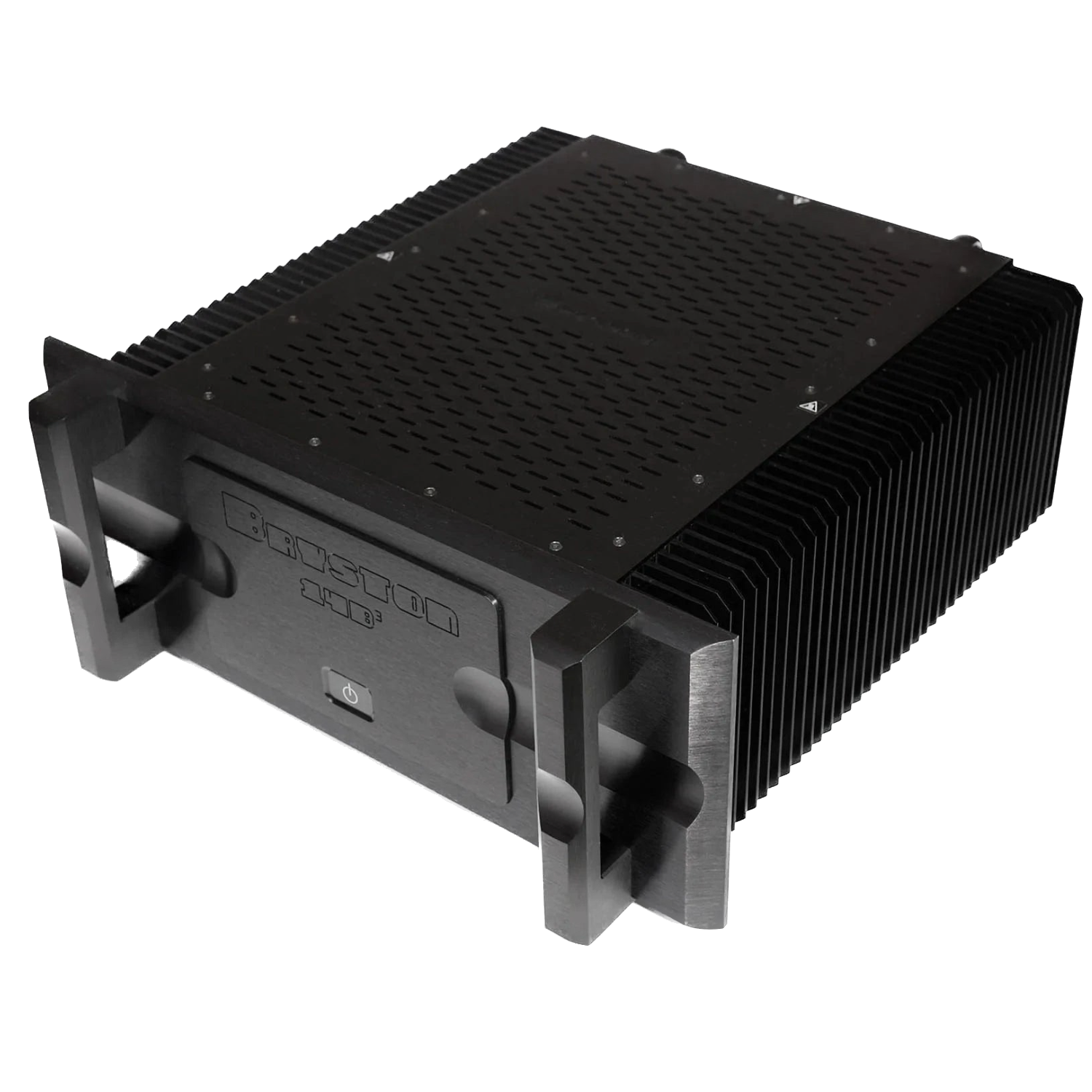

bryston-14b-cubed-dual-mono-amplifier-with-19inch-faceplate-black-angled-stereophonic.png

Product Features

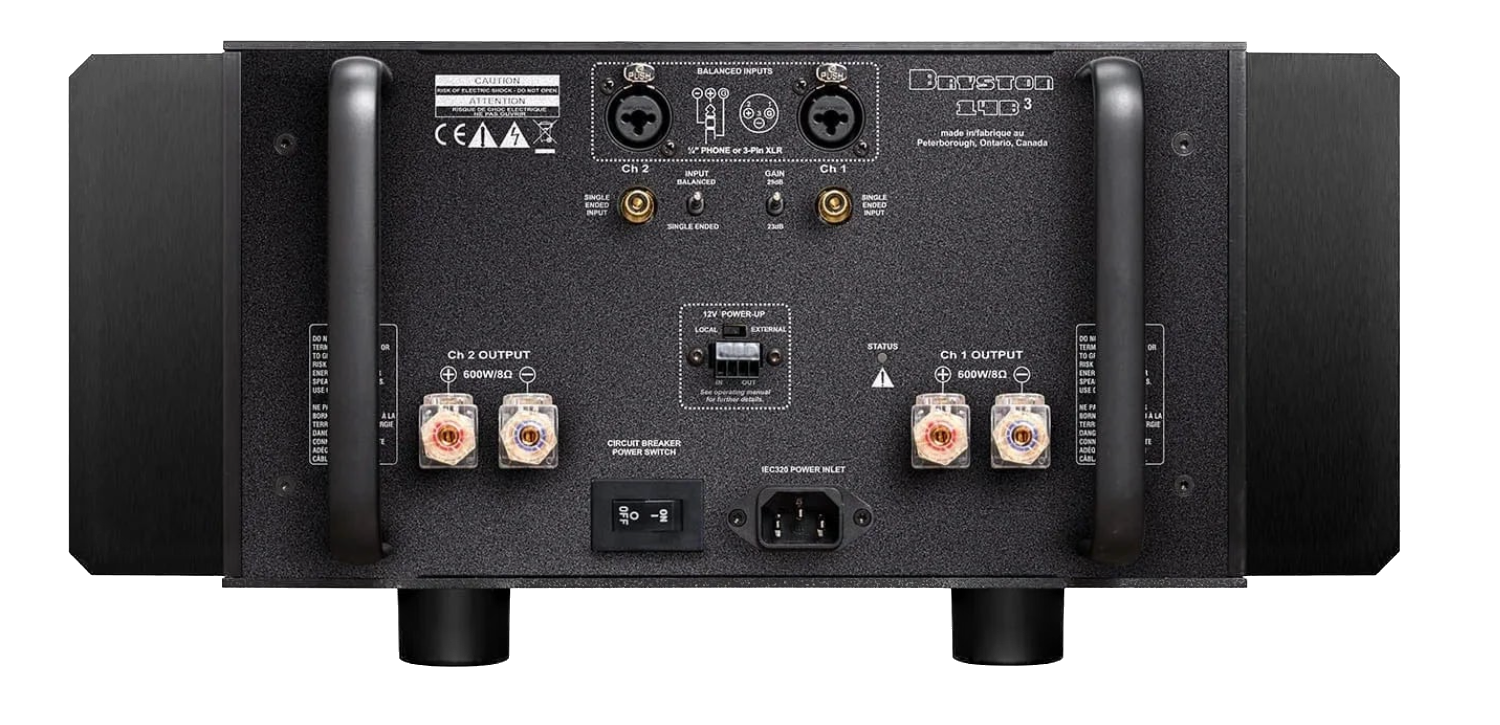

  • Balanced XLR and Single ended RCA input
  • 2 Channels each with fully independent power supplies including transformers
  • 600W into 8 ohms (and up to 900 into 4 ohms) per channel
  • The patented Salomie circuit found in all Cubed Series amplifiers
  • Switchable gain (23dB or 29dB)
  • Fully convection cooled means no noisy fans
  • Machined and anodized aluminum enclosure and dress panel
  • Less than 500mW standby power consumption
  • SoftStart microprocessor controlled startup sequence won't trip circuit breakers
  • DC trigger for automated turn on and turn off
  • Legendary Bryston 10 Year Warranty


Technical Specifications

Frequency Response
<1Hz - 100kHz: -3dB

Noise
RCA: -118dB
XLR: -122dB

THD+N (20Hz-20kHz @ Rated Power, 8Ω)
<0.005%

Power Output
600W @ 8Ω | 800W @ 4Ω

Input Impedance
Unbalanced 7.5kΩ
Balanced 5kΩ / leg

Faceplate Finishes
Black
Silver

Faceplate Sizes (non rack mountable)
17" (43.18 cm)
19" (48.26 cm), with front mounted handles

Weight
41 kg

Dimensions (W x H x D)
17" (43.18 cm) or 19" (48.26 cm) x 20.55 cm x 42.67 cm (or 46.74 cm with front handles)



*This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change without notice.

E&OE



10 Years
