We'd like you to Meet the BDA-3.314
Stunning Technology and Versatility
Since Bryston began developing products for digital playback enthusiasts, one thing has been constant - separate components for streaming and D to A.
That all changes with Brystons new BDA-3.14, cleverly merging their BDP and BDA platforms into this one new product that starts with out the BDA-3 and adds a high quality streamer internally connected with I²S - the most accurate digital interconnection method currently available.
Additionally, 10 other inputs are available to make the BDA-3.14 your high resolution digital hub.
Product Features
- Built in streamer features up to 192kHz / 24 bit playback.
- Tidal, Qobuz, Roon, Internet Radio and more
- Connect USB or NAS drive for local library playback.
- Full control via web enabled device

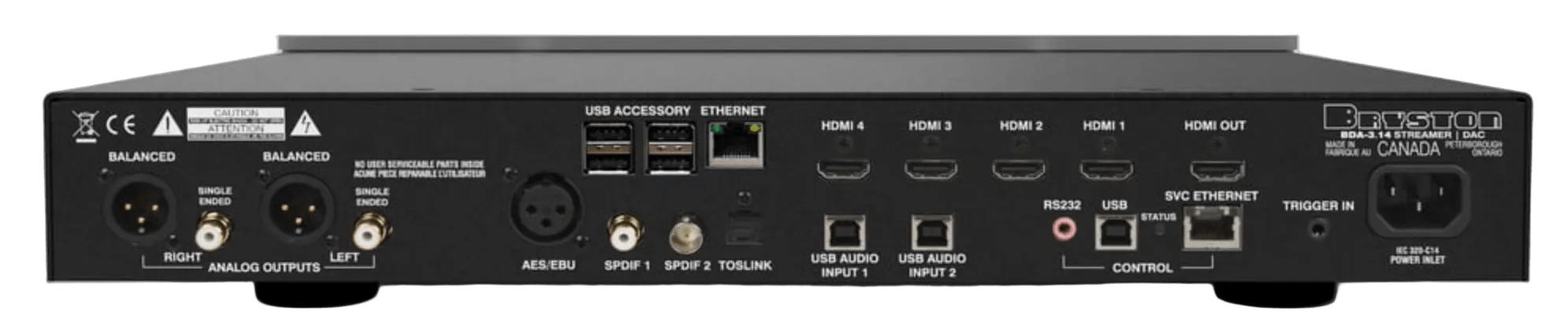

- 10 different inputs including 4 HDMI, 2 USB, AES/EBU, S/PDIF RCA, S/PDIF BNC, and Toslink
- PCM support up to 384 kHz / 32 bit
- DSD support up to DSD-256 (x4)
- User selectable upsampling for some inputs
- Separate power supplies for analog and digital circuitry
- Fully discrete Class-A balanced analog outputs
- Control via IR, RS232, IP, or 12V trigger
- Aluminum chassis and metalwork. Machined and anodised aluminium dress panel.
Product Options
- Silver or black faceplate
- 17” or 19” faceplate (non-rack mountable)
- BR4 remote control
Accolades
Technical Specifications
Frequency Response
20Hz - 20kHz: ±0.1dB
THD+N (20Hz-20kHz)
<0.002%
Voltage Output
XLR: 4V
RCA: 2V
Noise
RCA: -134dB
XLR: -140dB
Faceplate Finishes
Black
Silver
Faceplate Sizes (non rack mountable)
17" (43.18 cm)
19" (48.26 cm)
Weight
4 kg
Dimensions (W x H x D)
17" (43.18 cm) or 19" (48.26 cm) x 8.64 cm x 30.48 cm
*This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change without notice.
E&OE
