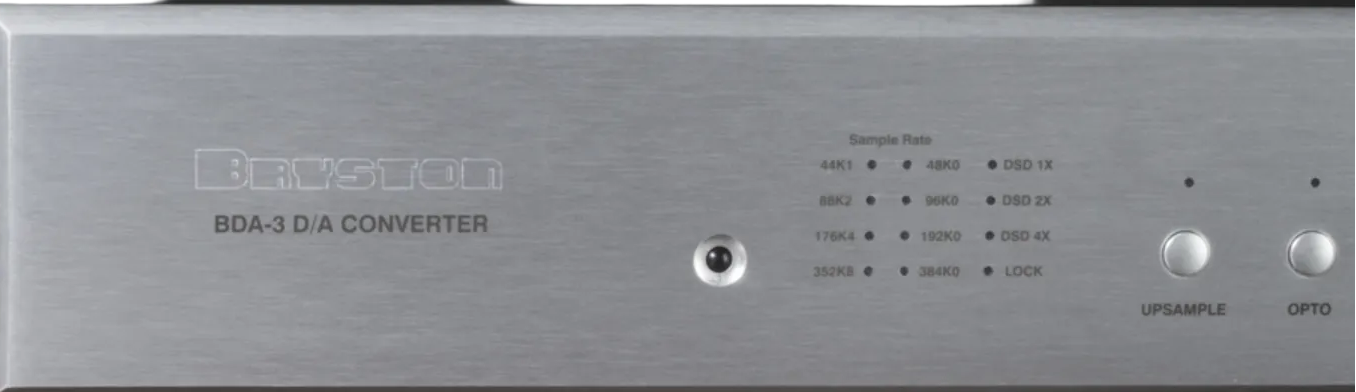

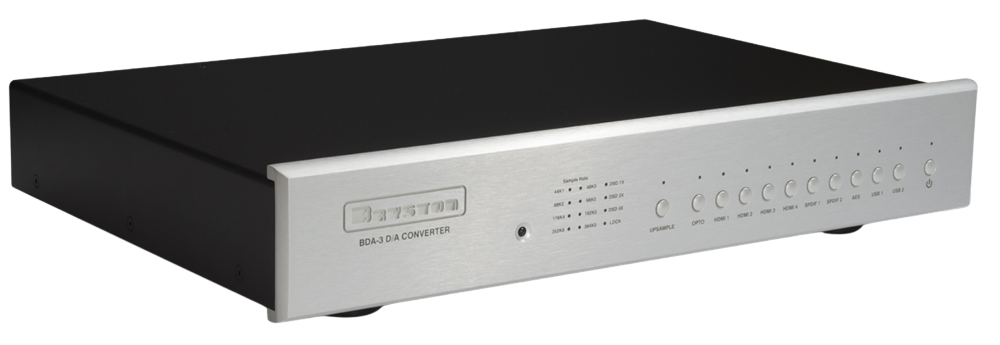

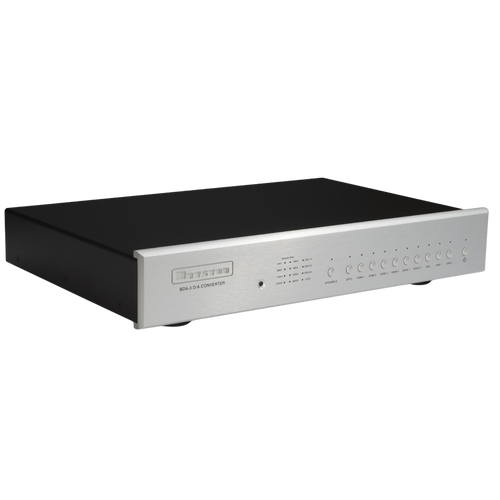

Introducing the BDA-3
Setting the Standard in Digital to Analogue Conversion
Audiophiles often seek 'giant killer' components. Though the phrase is loosely used, rarely, if ever do we find such elusive equipment. The BDA-3 is one of these rare specimens.
An extraordinarily well engineered DAC, the BDA-3 is compatible with virtually any digital source component and features measured performance that is very near the theoretical limit of the digital audio streams it can decode.
Such a well executed DAC can resolve the finest details in your digital recording with aplomb. Besides it's superb measured performance, it's a total joy to use and listen to. It is operationally easy to understand and sounds better than anyone could expect.
Regardless of your digital audio budget, this should be on your short list.
Product Features

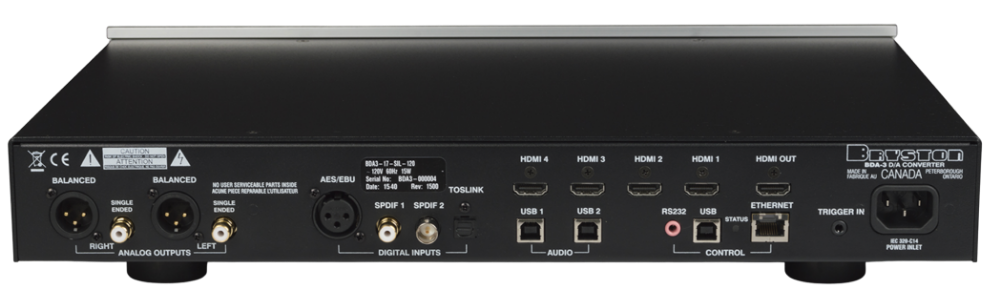

- 10 different inputs including 4 HDMI, 2 USB, AES/EBU, S/PDIF RCA, S/PDIF BNC, and Toslink
- PCM support up to 384 kHz / 32 bit
- DSD support up to DSD-256 (x4)
- User selectable upsampling for some inputs
- Separate power supplies for analog and digital circuitry
- Fully discrete Class-A balanced analog outputs
- Control via IR, RS232, IP, or 12V trigger
- Aluminium chassis and metalwork. Machined and anodised alumini um dress panel.
Product Options
- Silver or black faceplate
- 17” or 19” faceplate (non-rack mountable)
Accolades
Technical Specifications
Frequency Response
20Hz - 20kHz: ±0.1dB
THD+N (20Hz-20kHz)
<0.002%
Voltage Output
XLR: 4V
RCA: 2V
Noise
RCA: -134dB
XLR: -140dB
Faceplate Finishes
Black
Silver
Faceplate Sizes (non rack mountable)
17" (43.18 cm)
19" (48.26 cm)
Dimensions (W x H x D)
17" (43.18 cm) or 19" (48.26 cm) x 8.64cm x 30.48 cm
*This information has been obtained from Manufacturers website. We advise that Features, Specifications & Price are subject change without notice.
E&OE
